4N30
-
Suppliers
DataSheet
General Description
4N30 General Description
The 4N29,4N30,4N31,4N32,4N33 have a gallium arsenide infrared emitter optically coupled to a silicon planar photodarlington.
4N30 Maximum Ratings
| ABSOLUTE MAXIMUM RATINGS (TA = 25 Unless otherwise specified.) | |||
| Parameter | Symbol | Value | Units |
| TOTAL DEVICE Storage Temperature |
TSTG | -55 to +150 | |
| Operating Temperature | TOPR | -55 to +100 | |
| Lead Solder Temperature | TSOL | 260 for 10 sec | |
| Total Device Power Dissipation @ TA= 25 Derate above 25 |
PD | 250 3.3 |
mW mW/ |
| EMITTER Continuous Forward Current |
IF | 80 | mA |
| Reverse Voltage | VR | 3 | V |
| Forward Current - Peak (300s, 2% Duty Cycle) | 1F(pk) | 3.0 | A |
| LED Power Dissipation @ TA = 25 | PD | 150 | mW |
| Derate above 25 | 2.0 | mW/ | |
| DETECTOR Collector-Emitter Breakdown Voltage |
BVCEO | 30 | V |
| Collector-Base Breakdown Voltage | BVCBO | 30 | V |
| Emitter-Collector Breakdown Voltage | BVECO | 5 | V |
| Detector Power Dissipation @ TA = 25 | PD | 150 2.0 |
mW mW/ |
| Derate above 25 | |||
| Continuous Collector Current | IC | 150 | mA |
4N30 Features
* High sensitivity to low input drive current
* Meets or exceeds all JEDEC Registered Specifications
* VDE 0884 approval available as a test option-add option .300. (e.g., 4N29.300)
* Meets or exceeds all JEDEC Registered Specifications
* VDE 0884 approval available as a test option-add option .300. (e.g., 4N29.300)
4N30 Typical Application
* Low power logic circuits
* Telecommunications equipment
* Portable electronics
* Solid state relays
* Interfacing coupling systems of different potentials and impedances.
* Telecommunications equipment
* Portable electronics
* Solid state relays
* Interfacing coupling systems of different potentials and impedances.
4N30
PDF/DataSheet Download
- Datasheet: 4N30
- File Size: 139772 KB
- Manufacturer: TOSHIBA [Toshiba Semiconductor]
- Click here to Download
- ·4N30(Short)
- Toshiba
- AC LINE / DIGITAL LOGIC ISOLATOR DIGITAL LOGIC / DIGITAL LOGIC ISOLATOR
- 286169 KB
- ·4N30300
- FAIRCHILD [Fairchild Semiconductor]
- GENERAL PURPOSE 6-PIN PHOTODARLINGTON OPTOCOUPLERS
- 447826 KB
- ·4N30300W
- FAIRCHILD [Fairchild Semiconductor]
- GENERAL PURPOSE 6-PIN PHOTODARLINGTON OPTOCOUPLERS
- 447826 KB
- ·4N303S
- FAIRCHILD [Fairchild Semiconductor]
- GENERAL PURPOSE 6-PIN PHOTODARLINGTON OPTOCOUPLERS
- 447826 KB
- ·4N303SD
- FAIRCHILD [Fairchild Semiconductor]
- GENERAL PURPOSE 6-PIN PHOTODARLINGTON OPTOCOUPLERS
- 447826 KB
- ·4N30S
- FAIRCHILD [Fairchild Semiconductor]
- GENERAL PURPOSE 6-PIN PHOTODARLINGTON OPTOCOUPLERS
- 447826 KB
- ·4N30S1(TA)-V
- EVERLIGHT
- 6 PIN PHOTODARLINGTON PHOTOCOUPLER
- 335559 KB
- ·4N30S1(TB)-V
- EVERLIGHT
- 8-BIT SINGLE-CHIP MICROCOMPUTER
- 335559 KB
4N30 Relative Products
4N2X
The 4N2X, 4N3X, H11AX series contains an infrared emitting diode optically coupled to a phototransistor. It is packaged in a 6-pin DIP package and available in wide-lead spacing and SMD option.

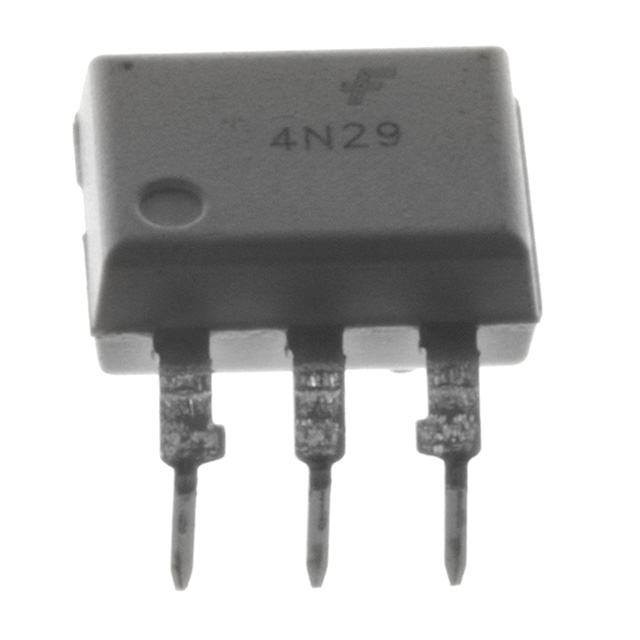

4N29TM
PHOTOCOUPLER DARL OUT GP 6DIP

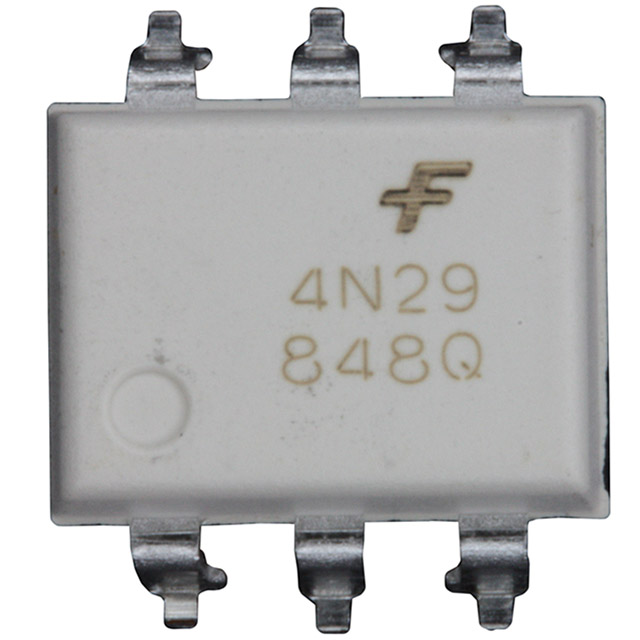

4N29SR2M
PHOTOCOUPLER DARL OUT GP 6SMD

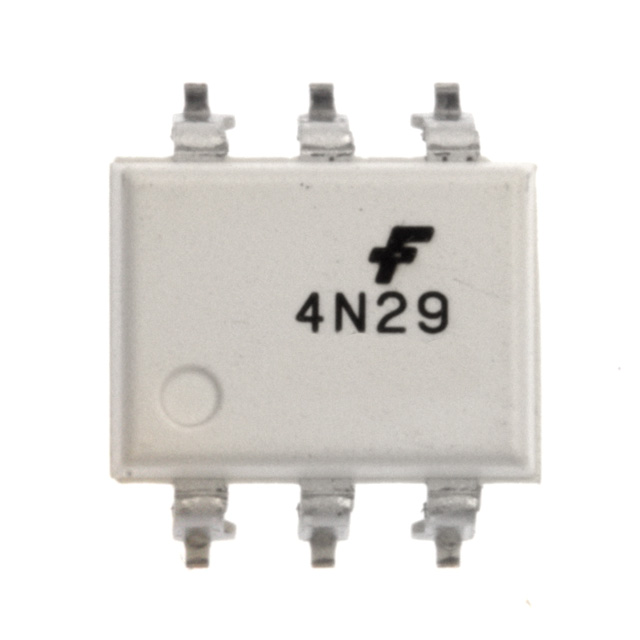

4N29SM
PHOTOCOUPLER DARL OUT GP 6SMD

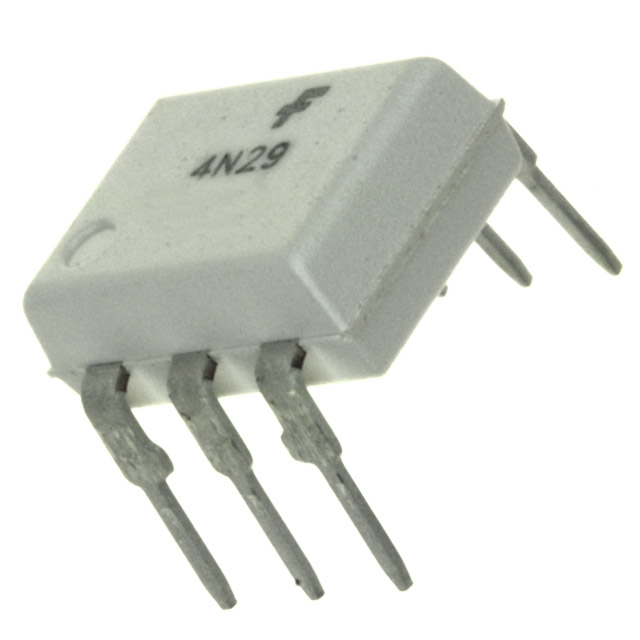

4N29M
