SeekIC No. : 002533217 Detail

501706B00000G: Heat Sinks TO-66 DIAM SHP BSKT 39.37 X 12.70

501706B00000G Data Sheet

US $ 1.6~1.87 / Piece | Get Latest Price

Part Number:: 501706B00000G
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500

Unit Price
$1.87
$1.77
$1.68
$1.6

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5017 evaluate
US $.08 - .08 / Piece

Test Points Test Point Mini SMT, 5K reel
5017-006 evaluate
US $38.88 - 44.32 / Piece

Stepper Motors .67A 21.2 TRQ 1.34IN
5017-006D evaluate
US $31.5 - 35.03 / Piece

Stepper Motors 1.34", 5.7V, .67 Amp 21.2 Trq, Dbl Shaft

Product Details

Quick Details

Product :	Heatsinks	Mounting Style :	Screw
Heatsink Material :	Aluminum	Thermal Resistance :	12 C / W
Length :	39.37 mm	Width :	26.42 mm
Height :	12.7 mm	Designed for :	TO-66

Description

Fin Style :
Product : Heatsinks
Mounting Style : Screw
Heatsink Material : Aluminum
Height : 12.7 mm
Thermal Resistance : 12 C / W
Length : 39.37 mm
Width : 26.42 mm
Designed for : TO-66

Pinout

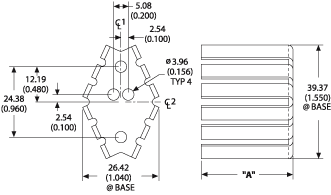

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
501706B00000G	Low cost diamond shaped basket heat sink	Black Anodize	N/A

Description

Thermal Resistance

12.00

Thermal resistance value of 501706B00000G is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	501706B00000G
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Bolt On
Height	0.5" (12.7mm)
Material	Aluminum
Package Cooled	TO-66
Power Dissipation @ Temperature Rise	2W @ 30°C
Thermal Resistance @ Forced Air Flow	7.0°C/W @ 200 LFM
Outline	39.37mm x 26.42mm
Thermal Resistance @ Natural	12°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	501706B00000G 501706B00000G
