513201B02500G

Heat Sinks TO-220/218 HEATSINK

product image

513201B02500G Picture
See larger image
SeekIC No. : 002533898 Detail

513201B02500G: Heat Sinks TO-220/218 HEATSINK

513201B02500G Data Sheet

floor Price/Ceiling Price

US $ .48~.48 / Piece | Get Latest Price
Part Number:
513201B02500G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~3850
  • Unit Price
  • $.48
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Mounting Style : Through Hole
Heatsink Material : Aluminum Fin Style : Radial
Thermal Resistance : 8.3 C / W Length : 38.1 mm
Width : 34.92 mm Height : 12.7 mm
Designed for : TO-218

Description

Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : Through Hole
Height : 12.7 mm
Fin Style : Radial
Length : 38.1 mm
Width : 34.92 mm
Designed for : TO-218
Thermal Resistance : 8.3 C / W


Pinout

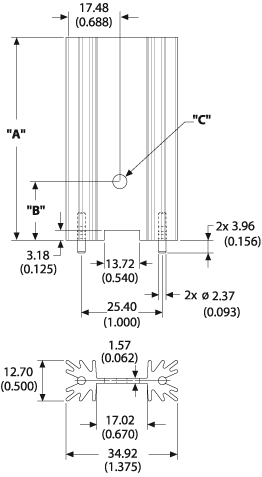

Connection Diagram


Specifications

Part # Description Finish Board Mounting
513201B02500G Extruded heat sink with radial fins with solderable pins Black Anodize View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.




Description

Thermal Resistance 8.30

Thermal resistance value of 513201B02500G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information513201B02500G
VendorAavid Thermalloy
CategoryFans, Thermal Management
Attachment MethodBolt On and PC Pin
Height2" (50.8mm)
MaterialAluminum
Package CooledTO-218
Power Dissipation @ Temperature Rise2W @ 20°C
Thermal Resistance @ Forced Air Flow3°C/W @ 400 LFM
Outline34.92mm x 12.70mm
Thermal Resistance @ Natural8.3°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 513201B02500G
513201B02500G
HS347 ND
HS347ND
HS347
