519703B00000G

Heat Sinks Hvy Gauge Sq.Basket TO-3 38.1mm Horiz

product image

519703B00000G Picture
See larger image
SeekIC No. : 002533955 Detail

519703B00000G: Heat Sinks Hvy Gauge Sq.Basket TO-3 38.1mm Horiz

519703B00000G Data Sheet

floor Price/Ceiling Price

US $ 5.78~6.56 / Piece | Get Latest Price
Part Number:
519703B00000G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~476
  • 476~500
  • 500~1000
  • Unit Price
  • $6.56
  • $6.25
  • $5.78
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description

Product :
Mounting Style :
Heatsink Material :
Fin Style :
Thermal Resistance :
Length :
Width :
Height :
Designed for :


Pinout

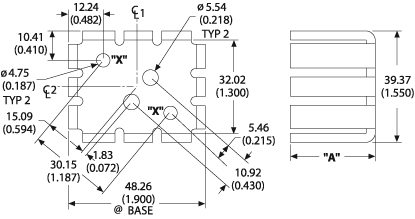

Connection Diagram


Specifications

Part # Description Finish Board Mounting
519703B00000G Heavy gauge square basket heat sink Black Anodize N/A



Description

Thermal Resistance 4.80

Thermal resistance value of 519703B00000G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information519703B00000G
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodBolt On
Height1.5" (38.1mm)
MaterialAluminum
Package CooledTO-3
Power Dissipation @ Temperature Rise6W @ 30°C
Thermal Resistance @ Forced Air Flow2.0°C/W @ 300 LFM
Outline48.26mm x 39.37mm
Thermal Resistance @ Natural4.8°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 519703B00000G
519703B00000G
