530002B02500G: Heat Sinks BLACK ANODIZE T-220

530002B02500G Data Sheet

US $ .68~1.1 / Piece | Get Latest Price

Part Number:: 530002B02500G
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500

Unit Price
$1.1
$.95
$.8
$.68

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5300 evaluate
US $22.64 - 22.64 / Piece

RF Adapters - Between Series F/M BNC-3LUG TRX "M"
5300 1.500G evaluate
US $2.57 - 2.57 / Piece

Thermal Interface Products 328' X 1.5" X .006" THERMALSIL III
5300 2.875G evaluate
Thermal Interface Products 328' X 3" X .006" THERMALSIL III

Product Details

Quick Details

Product :	Heatsinks	Heatsink Material :	Aluminum
Fin Style :	Radial	Length :	25.4 mm
Width :	41.91 mm	Height :	63.5 mm
Designed for :	TO-220

Description

Mounting Style :
Thermal Resistance :
Product : Heatsinks
Heatsink Material : Aluminum
Height : 63.5 mm
Designed for : TO-220
Fin Style : Radial
Length : 25.4 mm
Width : 41.91 mm

Pinout

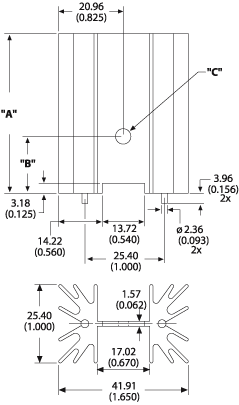

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
530002B02500G	Extruded heat sink with large radial fins and solderable pins	Black Anodize	View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.

Description

Thermal Resistance

2.60

Thermal resistance value of 530002B02500G is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	530002B02500G
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Bolt On and PC Pin
Height	2.5" (63.5mm)
Material	Aluminum
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	20W @ 60°C
Thermal Resistance @ Forced Air Flow	2.0°C/W @ 300 LFM
Outline	41.91mm x 25.40mm
Thermal Resistance @ Natural	2.6°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	530002B02500G 530002B02500G HS380 ND HS380ND HS380
