530161B00162G

BOARD LEVEL HEAT SINK

product image

530161B00162G Picture
See larger image
SeekIC No. : 004232684 Detail

530161B00162G: BOARD LEVEL HEAT SINK

530161B00162G Data Sheet

floor Price/Ceiling Price

US $ .77~.77 / Piece | Get Latest Price
Part Number:
530161B00162G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 1~1000
  • Unit Price
  • $.77
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

Connection Diagram


Specifications

Part # Description Finish Board Mounting
530161B00162G High rise style heat sink with twisted fins and wave on solderable mounts. With device clip. Black Anodize N/A
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.




Description

Thermal Resistance 4.40

Thermal resistance value of 530161B00162G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information530161B00162G
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodClip and PC Pin
Height1.75" (44.45mm)
MaterialAluminum
Package CooledTO-218
Power Dissipation @ Temperature Rise12W @ 60°C
Thermal Resistance @ Forced Air Flow2.0°C/W @ 200 LFM

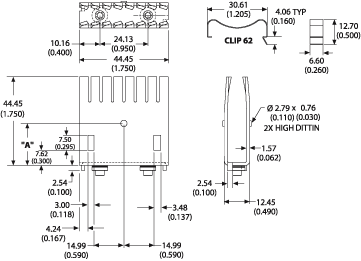

Outline44.45mm x 12.45mm
Thermal Resistance @ Natural4.4°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 530161B00162G
530161B00162G
