530401B00100G

Shape: Square
Diameter: -
Material: Aluminum
Material Finish: Black Anodized
Series: -
Type: Board Level, Vertical
Thermal Resistance @ Forced Air Flow: 2°C/W @ 400 LFM
Manufacturer: Aavid Thermalloy
Width: 0.750" (19.05mm)
Attachment Method: Bolt On and Board Mounts
Package Cooled: TO-218, TO-247
Length: 1.750" (44.45mm)
Height Off Base (Height of Fin): 1.750" (44.45mm)
Thermal Resistance @ Natural: 6.3°C/W
Power Dissipation @ Temperature Rise: 12W @ 70°C

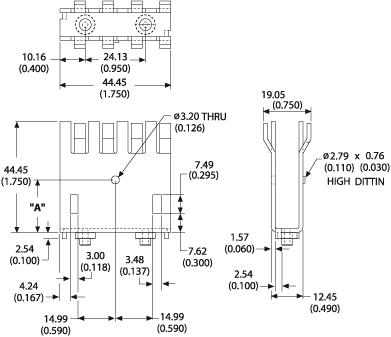

Pinout




Specifications

Part #	Description	Finish	Board Mounting
530401B00100G	High rise style heat sink features staggered fins and solderable Wave On mounts	Black Anodize	View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.

Description

Thermal Resistance

6.30

Thermal resistance value of 530401B00100G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information	530401B00100G
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Bolt On
Height	1.75" (44.45mm)
Material	Aluminum
Package Cooled	TO-218
Power Dissipation @ Temperature Rise	12W @ 70°C
Thermal Resistance @ Forced Air Flow	2°C/W @ 400 LFM
Outline	44.45mm x 12.45mm
Thermal Resistance @ Natural	6.3°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	530401B00100G 530401B00100G
