530400B00100G: Heat Sinks HIGH RISE TO218/220 44.45mm VERT BLK

530400B00100G Data Sheet

US $ 2.57~2.65 / Piece | Get Latest Price

Part Number:: 530400B00100G
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~1080
1080~1500

Unit Price
$2.65
$2.57

Processing time
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

53040 evaluate
US $14 - 14 / Piece

TOOL SCREWDRVR SLOT 12.0MM 318MM
530401B00100G evaluate
US $1.16 - 1.16 / Piece

BOARD LEVEL HEAT SINK
530401B00150 evaluate
US $1.52 - 1.78 / Piece

Heat Sinks BLACK ANODIZE TO-218

Product Details

Description

Product :
Mounting Style :
Heatsink Material :
Fin Style :
Thermal Resistance :
Length :
Width :
Height :
Designed for :

Pinout

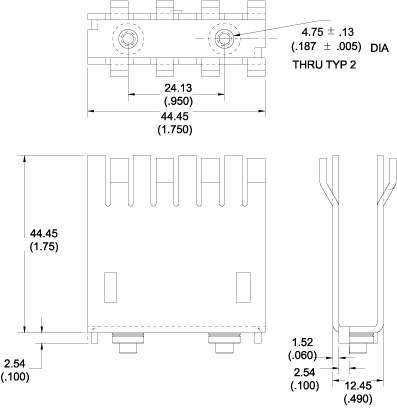

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
530400B00100G	High rise style heat sink features staggered fins and solderable Wave On mounts	Black Anodize	View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.

Description

Thermal Resistance

6.30

Thermal resistance value of 530400B00100G is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	530400B00100G
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Bolt On
Height	1.75" (44.45mm)
Material	Aluminum
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	4W @ 30°C
Thermal Resistance @ Forced Air Flow	2°C/W @ 400 LFM
Outline	44.45mm x 12.45mm
Thermal Resistance @ Natural	6.3°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	530400B00100G 530400B00100G
