530802B05100G

Heat Sinks HIGH RISE TO-220/247 44.45mm VERT BLK

product image

530802B05100G Picture
See larger image
SeekIC No. : 002533953 Detail

530802B05100G: Heat Sinks HIGH RISE TO-220/247 44.45mm VERT BLK

530802B05100G Data Sheet

floor Price/Ceiling Price

US $ 3.65~4.05 / Piece | Get Latest Price
Part Number:
530802B05100G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~750
  • 750~1000
  • 1000~1500
  • Unit Price
  • $4.05
  • $3.75
  • $3.65
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description

Product :
Mounting Style :
Heatsink Material :
Fin Style :
Thermal Resistance :
Length :
Width :
Height :
Designed for :


Pinout

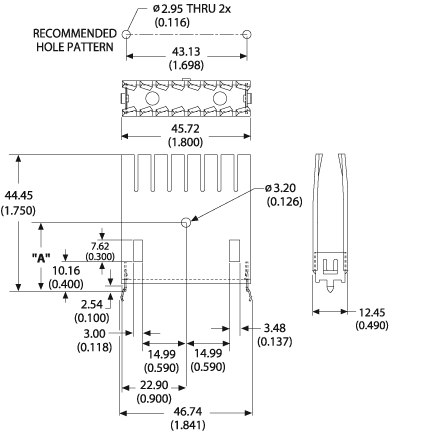

Connection Diagram


Specifications

Part # Description Finish Board Mounting
530802B05100G High rise style heat sink features twisted fins and solderable tabs Black Anodize View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.




Description

Thermal Resistance 6.30

Thermal resistance value of 530802B05100G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information530802B05100G
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodClip and PC Pin
Height1.75" (44.45mm)
MaterialAluminum
Package CooledTO-220
Power Dissipation @ Temperature Rise4W @ 30°C
Thermal Resistance @ Forced Air Flow1°C/W @ 700 LFM
Outline45.72mm x 12.45mm
Thermal Resistance @ Natural6.3°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 530802B05100G
530802B05100G
