531102B00000G: Heat Sinks TO-220 VERT 10.4 TR EXTRUDED W/FINS

531102B00000G Data Sheet

US $ .46~.72 / Piece | Get Latest Price

Part Number:: 531102B00000G
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500

Unit Price
$.72
$.63
$.53
$.46

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5311 evaluate
CUTTER OVAL MINI SEMI FLUSH STD
53110 evaluate
US $7.21 - 7.21 / Piece

TOOL SCREWDRVR PHIL SZ1 186MM
531100B02133 evaluate
US $.78 - .78 / Piece

BOARD LEVEL HEAT SINK

Product Details

Quick Details

Product :	Heatsinks	Mounting Style :	Through Hole
Heatsink Material :	Aluminum	Fin Style :	Radial
Thermal Resistance :	10.4 C / W	Length :	12.7 mm
Width :	35.052 mm	Height :	38.1 mm
Designed for :	TO-220, TO-202

Description

Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : Through Hole
Height : 38.1 mm
Thermal Resistance : 10.4 C / W
Length : 12.7 mm
Fin Style : Radial
Width : 35.052 mm
Designed for : TO-220, TO-202

Pinout

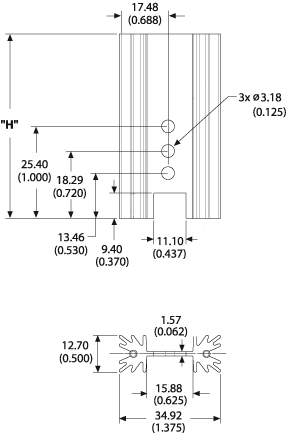

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
531102B00000G	Extruded heat sink with radial fins and notched base	Black Anodize	View Hole Dimensions

Description

Thermal Resistance

10.40

Thermal resistance value of 531102B00000G is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	531102B00000G
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Bolt On
Height	1.5" (38.1mm)
Material	-
Package Cooled	TO-220, TO-202
Power Dissipation @ Temperature Rise	7W @ 70°C
Thermal Resistance @ Forced Air Flow	3°C/W @ 500 LFM
Outline	34.92mm x 12.70mm
Thermal Resistance @ Natural	10.4°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	531102B00000G 531102B00000G HS284 ND HS284ND HS284
