531202C02500: Heat Sinks TO-220 DUAL MOUNT

531202C02500 Data Sheet

US $ 3.52~4.74 / Piece | Get Latest Price

Part Number:: 531202C02500
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~1
1~100
100~500
500~1000

Unit Price
$4.74
$4.03
$3.7
$3.52

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5312 evaluate
US $35.62 - 36.68 / Piece

Test Clips 52 PINS
5312/2TDHP evaluate
US $83.22 - 87.64 / Piece

Fans & Blowers 140x140x51 12VDC 241.3 CFM 41W
53120 evaluate
US $11.62 - 11.62 / Piece

TOOL SCREWDRVR PHIL SZ3 268MM

Product Details

Quick Details

Product :	Heatsinks	Mounting Style :	Through Hole
Heatsink Material :	Aluminum	Fin Style :	Radial
Thermal Resistance :	7.5 C / W	Length :	2.5 in
Width :	34.92 mm	Height :	50.8 mm
Designed for :	TO-220, TO-202

Description

Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : Through Hole
Height : 50.8 mm
Thermal Resistance : 7.5 C / W
Fin Style : Radial
Width : 34.92 mm
Designed for : TO-220, TO-202
Length : 2.5 in

Pinout

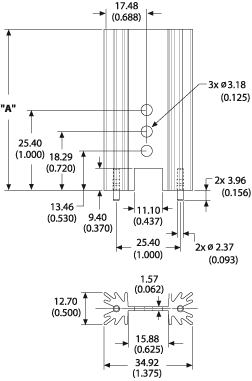

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
531202C02500	Extruded heat sink with radial fins and notched base and solderable pins	Gold Chromate	N/A
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.

Description

Thermal Resistance

7.50

Thermal resistance value of 531202C02500 is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	531202C02500
Vendor	Aavid Thermalloy
Category	Fans, Thermal Management
Attachment Method	Bolt On and PC Pin
Height	2" (50.8mm)
Material	Aluminum
Package Cooled	TO-220, TO-202
Power Dissipation @ Temperature Rise	5W @ 40°C
Thermal Resistance @ Forced Air Flow	4°C/W @ 600 LFM
Outline	34.92mm x 12.70mm
Thermal Resistance @ Natural	7.5°C/W
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	531202C02500 531202C02500 HS132 P ND HS132PND HS132-P
