BOARD LEVEL HEAT SINK
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Capacitance : | 16.5 pF | Series: | - |
Manufacturer: | Aavid Thermalloy | Type: | Board Level, Vertical |
Package Cooled: | TO-220 | Attachment Method: | Clip and PC Pin |
Shape: | Rectangular | Length: | 2.461" (63.50mm) |
Width: | 1.650" (41.91mm) | Diameter: | - |
Height Off Base (Height of Fin): | 1.000" (25.40mm) | Power Dissipation @ Temperature Rise: | 16W @ 50°C |
Thermal Resistance @ Forced Air Flow: | 1.0°C/W @ 800 LFM | Thermal Resistance @ Natural: | 3.8°C/W |
Material: | Aluminum |
Part # | Description | Finish | Board Mounting |

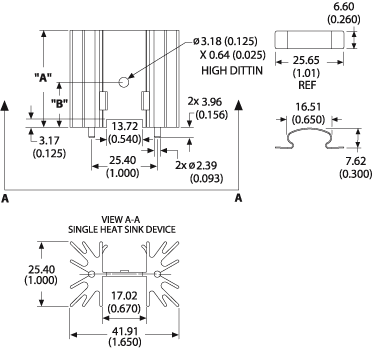

533602B02552G | Extruded heat sink with large radial fins and solderable pins and device clip | Black Anodize | View Hole Dimensions |
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component. |
Thermal Resistance | 3.80 |
Technical/Catalog Information | 533602B02552G |
Vendor | Aavid Thermalloy |
Category | Thermal Management |
Attachment Method | Clip and PC Pin |
Height | 2.5" (63.5mm) |
Material | Aluminum |
Package Cooled | TO-220 |
Power Dissipation @ Temperature Rise | 16W @ 50°C |
Thermal Resistance @ Forced Air Flow | 2.0°C/W @ 300 LFM |
Outline | 41.91mm x 25.40mm |
Thermal Resistance @ Natural | 3.8°C/W |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | 533602B02552G 533602B02552G |
