Part Number: 54F413D-CQB
Description: The 'F413 is an expandable fall-through type high-speed First-In First-Out (FIFO) buffer memory organi...
- Table of contents:
54F413D-CQB
-
Suppliers
DataSheet
General Description
54F413D-CQB General Description
The 'F413 is an expandable fall-through type high-speed First-In First-Out (FIFO) buffer memory organized as 64 words by four bits. The 4-bit input and output registers record and transmit, respectively, asynchronous data in parallel form. Control pins on the input and output allow for handshaking and expansion. The 4-bit wide, 62-bit deep fallthrough stack has self-contained control logic.
54F413D-CQB Maximum Ratings
|
Storage Temperature Ambient Temperature under Bias Junction Temperature under Bias Plastic VCC Pin Potential to Ground Pin Input Voltage (Note 2) Input Current (Note 2) Voltage Applied to Output in HIGH State (with VCC = 0V) Standard Output TRI-STATE Output Current Applied to Output in LOW State (Max) ESD Last Passing Voltage (Min) |
- 65 to + 150 -55 to + 125 -55 to + 175 -55 to +150 -0.5V to +7.0V -0.5V to + 7.0V -30 mA to + 5.0 mA -0.5V to VCC -0.5V to + 5.5V twice the rated IOL (mA) 4000V |
Note 1: Absolute maximum ratings are values beyond which the device may be damaged or have its useful life impaired. Functional operation under these conditions is not implied.
Note 2: Either voltage limit or current limit is sufficient to protect inputs.
54F413D-CQB Features
· Separate input and output clocks
· Parallel input and output
· Expandable without external logic
· 15 MHz data rate
· Supply current 160 mA max
· Available in SOIC, (300 mil only)
· Parallel input and output
· Expandable without external logic
· 15 MHz data rate
· Supply current 160 mA max
· Available in SOIC, (300 mil only)

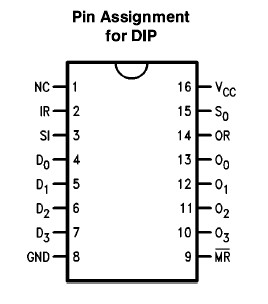

54F413D-CQB Connection Diagram
54F413D-CQB
PDF/DataSheet Download
- Datasheet: 54F413D-CQB
- File Size: 115802 KB
- Manufacturer: NSC [National Semiconductor]
- Click here to Download
