Part Number: 54FCT574
MFG: N/A
Package Cooled: CDIP
D/C: N/A
Description: The 'FCT574 is an octal flip-flop with a buffered common Clock (CP) and a buffered ...
- Table of contents:
54FCT574
-
Suppliers
DataSheet
General Description
54FCT574 General Description
The 'FCT574 is an octal flip-flop with a buffered common Clock (CP) and a buffered common Output Enable (OE). The information presented to the D inputs is stored in the flip-flops on the LOW-to-HIGH Clock (CP) transition. The device is functionally identical to the 'FCT374 except for the pinouts.
54FCT574 Maximum Ratings
Storage Temperature........................... −65˚C to +150˚C
Ambient Temperature under Bias......... −55˚C to +125˚C
Junction Temperature under Bias
Ceramic ..................−55˚C to +175˚C
VCC Pin Potential to Ground Pin .............−0.5V to +7.0V
Input Voltage (Note 2)........................... −0.5V to +7.0V
Input Current (Note 2).................... −30 mA to +5.0 mA
Voltage Applied to Any Output in
the Disabled or Power-Off State ..............−0.5V to 5.5V
in the HIGH State .....................................−0.5V to VCC
Current Applied to Output
in LOW State (Max)............. twice the rated IOL (mA)
DC Latchup Source Current........................... −500 mA
Ambient Temperature under Bias......... −55˚C to +125˚C
Junction Temperature under Bias
Ceramic ..................−55˚C to +175˚C
VCC Pin Potential to Ground Pin .............−0.5V to +7.0V
Input Voltage (Note 2)........................... −0.5V to +7.0V
Input Current (Note 2).................... −30 mA to +5.0 mA
Voltage Applied to Any Output in
the Disabled or Power-Off State ..............−0.5V to 5.5V
in the HIGH State .....................................−0.5V to VCC
Current Applied to Output
in LOW State (Max)............. twice the rated IOL (mA)
DC Latchup Source Current........................... −500 mA
54FCT574 Features
*Inputs and outputs on opposite sides of package
allowing easy interface with microprocessors
*Useful as input or output port for microprocessors
*Functionally identical to 'FCT374
*TRI-STATE outputs for bus-oriented applications
*Output sink capability of 32 mA, source capability of 12 mA
*TTL input and output level compatible
*CMOS power consumption
*Standard Microcircuit Drawing (SMD) 5962-8951301
allowing easy interface with microprocessors
*Useful as input or output port for microprocessors
*Functionally identical to 'FCT374
*TRI-STATE outputs for bus-oriented applications
*Output sink capability of 32 mA, source capability of 12 mA
*TTL input and output level compatible
*CMOS power consumption
*Standard Microcircuit Drawing (SMD) 5962-8951301

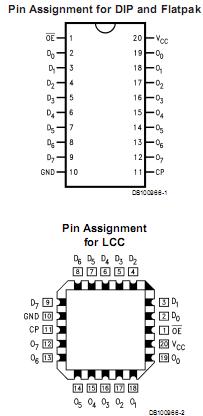

54FCT574 Connection Diagram
