54HC4046RP

Features: ·RAD-PAK® Technology Hardened Against Natural Space Radiation·Total Dose Hardness >100 krad (Si)·Low Power Phase Lock Loop·Package: -16 Pin RAD-PAK® Flat Package -16 Pin RAD-PAK® DIP·Low Dynamic Power Consumption - VCC = 4.5V·Maximum VCO Operating Frequency - 12 MHz (VCC =...

product image

54HC4046RP Picture
SeekIC No. : 004233389 Detail

54HC4046RP: Features: ·RAD-PAK® Technology Hardened Against Natural Space Radiation·Total Dose Hardness >100 krad (Si)·Low Power Phase Lock Loop·Package: -16 Pin RAD-PAK® Flat Package -16 Pin RAD-PAK...

floor Price/Ceiling Price

Part Number:
54HC4046RP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·RAD-PAK® Technology Hardened
   Against Natural Space Radiation
·Total Dose Hardness >100 krad (Si)
·Low Power Phase Lock Loop
·Package:
   -16 Pin RAD-PAK® Flat Package
   -16 Pin RAD-PAK® DIP
·Low Dynamic Power Consumption
   - VCC = 4.5V
·Maximum VCO Operating Frequency
   - 12 MHz (VCC = 4.5V)
·Fast Comparator Response Time
   (VCC = 4.5V)
   - Comparator I: 25 ns
   - Comparator II: 30 ns
   - Comparator III: 25 ns
·Screening per TM 5004
·QCI per TM5005



Pinout

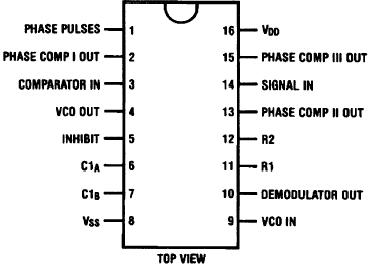

  Connection Diagram


Specifications

PARAMETER SYMBOL MIN MAX UNIT
Supply Voltage VCC -0.5 +7.0 V
DC Input Voltage VIN -0.5 VCC+0.5 V
DC Output Voltage VOUT -0.5 VCC+0.5 V
Clamp Diode Current IIK, IOK   ±20 mA
DC Output Current, per pin IOUT   +25 mA
DC VCC or GND Current, per
pin
ICC   ±50 mA
Storage Temperature Range TSTG -65 +150
Power Dissipation

PD

  500 mW



Description

S Ei's 54HC4046RP (RP for RAD-PAK®) high speed Phase Lock Loop microcircuit features a 100 kilorad (Si) total dose tolerance. This device uses advanced CMOS technology to obtain high frequency operation. The 54HC4046RP contains a low power linear voltage controlled oscillator (VCO), a source follower, and three phase comparators. The three phase comparators have a common signal input and a common comparator input. The signal input of 54HC4046RP has a self biasing amplifier allowing signals to be either capacitively coupled to the phase comparators with a small signal or directly coupled with standard input logic levels. Any one of the three comparators feeds an external filter network, which in turn feeds the VCO input. This input is a very high impedance CMOS input that also drives the source follower. An inhibit pin is provided to disable the VCO and the source follower, providing a method of putting the IC in a low power state. Capable of surviving space environments, the 54HC4046RP is ideal for many satellite, spacecraft, and space probe missions. The radiation hardened RADPAK ® technology incorporates radiation shielding in the microcircuit package. The 54HC4046RP is available in Class S packaging and screening.
