Purchase 54LS114, In-stock 54LS114 From SeekIC.
Part Number: 54LS114
Description: The 'LS114 features individual J, K and set inputs and common clock and common clear inputs. When the ...
- Table of contents:
54LS114
-
Suppliers
DataSheet
General Description
54LS114 General Description
The 'LS114 features individual J, K and set inputs and common clock and common clear inputs. When the clock goes HIGH the inputs are enabled and data will be accepted. The logic level of the J and K inputs may be allowed to change when the Clock Pulse is HIGH and the bistable will perform according to the truth table as long as the minimum setup times are observed. Input data is transferred to the outputs on the negative-going edge of the clock pulse.
54LS114 Maximum Ratings
Supply Voltage ....................................................................................7V
Input Voltage ......................................................................................7V
Operating Free Air Temperature Range
54LS ..........................................................................-55 to +125
Storage Temperature Range .........................................-65 to +150
Input Voltage ......................................................................................7V
Operating Free Air Temperature Range
54LS ..........................................................................-55 to +125
Storage Temperature Range .........................................-65 to +150

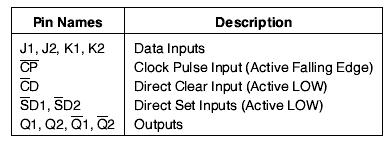

54LS114 Connection Diagram
54LS114
PDF/DataSheet Download
- Datasheet: 54LS114
- File Size: 120921 KB
- Manufacturer: NSC [National Semiconductor]
- Click here to Download
