54VCXH162244

Features: *3.6V TOLERANT INPUTS AND OUTPUTS* HIGH SPEED : tPD = 3.4 ns (MAX.) at VCC = 3.0 to 3.6V tPD = 3.8 ns (MAX.) at VCC = 2.3 to 2.7V* POWER DOWN PROTECTION ON INPUTS AND OUTPUTS* SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 12mA (MIN) at VCC = 3.0V |IOH| = IOL = 8mA (MIN) at VCC = 2.3V* 26&#...

product image

54VCXH162244 Picture
See larger image
SeekIC No. : 004233465 Detail

54VCXH162244: Features: *3.6V TOLERANT INPUTS AND OUTPUTS* HIGH SPEED : tPD = 3.4 ns (MAX.) at VCC = 3.0 to 3.6V tPD = 3.8 ns (MAX.) at VCC = 2.3 to 2.7V* POWER DOWN PROTECTION ON INPUTS AND OUTPUTS* SYMMETRICAL ...

54VCXH162244 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
54VCXH162244
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* 3.6V TOLERANT INPUTS AND OUTPUTS
* HIGH SPEED :
   tPD = 3.4 ns (MAX.) at VCC = 3.0 to 3.6V
   tPD = 3.8 ns (MAX.) at VCC = 2.3 to 2.7V
* POWER DOWN PROTECTION ON INPUTS
   AND OUTPUTS
* SYMMETRICAL OUTPUT IMPEDANCE:
   |IOH| = IOL = 12mA (MIN) at VCC = 3.0V
   |IOH| = IOL = 8mA (MIN) at VCC = 2.3V
* 26Ω SERIE RESISTORS IN OUTPUTS
* OPERATING VOLTAGE RANGE:
   VCC(OPR) = 2.3V to 3.6V
* PIN AND FUNCTION COMPATIBLE WITH
   54 SERIES H162244
* BUS HOLD PROVIDED ON DATA INPUTS
* LATCH-UP PERFORMANCE EXCEEDS
   300mA (JESD 17)
* ESD PERFORMANCE:
   HBM > 2000V (MIL STD 883 method 3015);
   MM > 200V
* 100 Krad mil. 1019.6 (RHA QUAL)
   CONDITION A
* NO SEL, NO SEU UNDER 72 Mev/cm2/mg
   LET HEAVY IONS IRRADIATION
* QML QUALIFIED PRODUCT
* SMD 5962-05210


Pinout

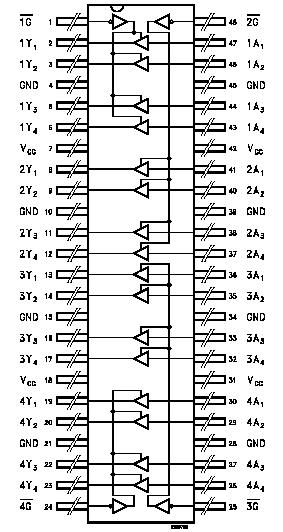

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage -0.5 to +4.6 V
VI DC Input Voltage -0.5 to +4.6 V
VO DC Output Voltage (OFF State) -0.5 to +4.6 V
VO DC Output Voltage (High or Low State) (note 1) -0.5 to VCC + 0.5 V
IIK DC Input Diode Current - 50 mA
IOK DC Output Diode Current (note 2) - 50 mA
IO DC Output Current ± 50 mA
ICC or IGND DC VCC or Ground Current per Supply Pin ± 100 mA
PD Power Dissipation 400 mW
Tstg Storage Temperature -65 to +150
TL Lead Temperature (10 sec) 260



Description

The 54VCXH162244 is a low voltage CMOS 16 BIT BUS BUFFER (NON INVERTED) fabricated with sub-micron silicon gate and five-layer metal wiring C2MOS technology. It is ideal for low power and very high speed 2.3 to 3.6V applications; 54VCXH162244 can be interfaced to 3.6V signal environment for both inputs and outputs.

Any nG output control of 54VCXH162244 governs four BUS BUFFERS. Output Enable input (nG) tied together gives full 16-bit operation.

When nG is LOW, the outputs are on. When nG is HIGH, the output are in high impedance state. This 54VCXH162244 is designed to be used with 3 state memory address drivers, etc. Bus hold on data inputs of 54VCXH162244 is provided in order to eliminate the need for external pull-up or pull-down resistor.

The 54VCXH162244 is including 26Ω series resistance in the outputs. These resistors permit to reduce line noise in high speed applications.
