560200B00000G: Heat Sinks REORD 532-580200B00 HEAT SINK DIP-14/16

560200B00000G Data Sheet

Get Latest Price

Part Number:: 560200B00000G
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5602 evaluate
RF Inductors 10uH 10%
5602-0-01-00-00-00-03-0 evaluate
US $.11 - .15 / Piece

Circuit Board Hardware - PCB COMP PRESS FIT PRINTED CIRCUIT PINS
5602-0-01-01-00-00-03-0 evaluate
US $.26 - .3 / Piece

Circuit Board Hardware - PCB 200u SN/PB OVER NI

Product Details

Quick Details

Product :	Heatsinks	Mounting Style :	Through Hole
Heatsink Material :	Aluminum	Fin Style :	Angled
Thermal Resistance :	20 C / W	Length :	22.61 mm
Width :	15.24 mm	Height :	10.42 mm
Designed for :	DIP

Description

Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : Through Hole
Fin Style : Angled
Thermal Resistance : 20 C / W
Width : 15.24 mm
Length : 22.61 mm
Height : 10.42 mm
Designed for : DIP

Pinout

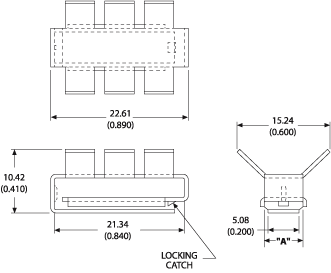

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
560200B00000G	Slide on heat sink with angled fins	Black Anodize	N/A

Description

Thermal Resistance

20.00

Thermal resistance value of 560200B00000G is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	560200B00000G
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Press Fit and PC Pin
Height	0.41" (10.42mm)
Material	Aluminum
Package Cooled	14-DIP and 16-DIP
Power Dissipation @ Temperature Rise	1W @ 20°C
Thermal Resistance @ Forced Air Flow	12.0°C/W @ 200 LFM
Outline	22.61mm x 15.24mm
Thermal Resistance @ Natural	20°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
