5639D1/5

Wavelength :
Luminous Intensity :
Viewing Angle :
Illumination Color : Red, Green
Mounting Type : Through Hole
Lens Color/Style : Tinted, Diffused
Packaging : Bulk
LED Size : 11.68 mm

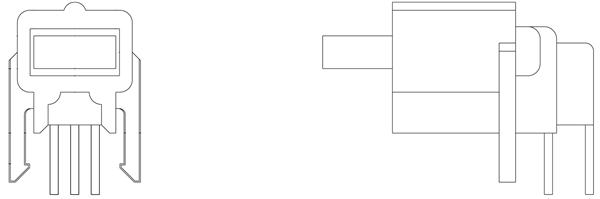

Pinout




Specifications

Part Number: 5639D1/5
Serial Number: 5639D
Emitted color: Red/Green
Lens color: White
Lum in min (mcd): 2.1/2.6
Lum in typ (mcd): 3.5/4.0
Rated current (mA): 20
Cont forward current max: 25
Fwd volts type: 1.9/2.1
Forward volt max.: 2.4/2.7
Reverse breakdown V: 5
Viewing angle (°): 100
Peak wave length (mA): 635/565
Housing type: UL94V-0
RoHS Status: Yes


Description

CML LED assemblies 5639D1/5 are available in both right angle and vertical package and utilize the CML IT line of high quality LEDs. Parts range in voltage from 2V to 12V and in current from 2mA to 20mA. The UL94V0 housings ensure proper LED alignment.


Parameters:

Technical/Catalog Information	5639D1/5
Vendor	CML Innovative Technologies Inc
Category	Optoelectronics
Color	Green, Red
Mounting Type	Through Hole, Right Angle
Configuration	Single
Voltage Rating	2.3V Green, 2.1V Red
Current	20mA
Lens Style/Size	Rectangle, 5mm x 2mm
Packaging	Bulk
Lens Type	Diffused, White
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	5639D1 5 5639D15 L20558 ND L20558ND L20558
