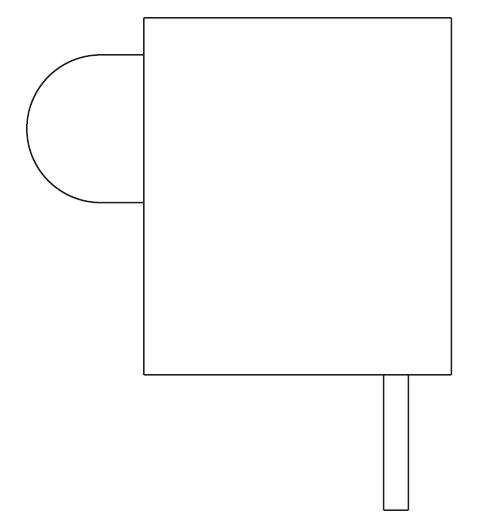

See larger image

SeekIC No. : 0027265 Detail

5650F5LC: LED Circuit Board Indicators GREEN DIFFUSED RIGHT ANGLE

5650F5LC Data Sheet

US $ .24~.34 / Piece | Get Latest Price

Part Number:: 5650F5LC
Mfg:: Chicago Miniature
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~500

Unit Price
$.34
$.31
$.27
$.24

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5650 evaluate
Test Clips DIP CLIP 14 PIN
5650-0-19-00-00-00-10-0 evaluate
US $.14 - .19 / Piece

Circuit Board Hardware - PCB PRESS FIT PIN RECPT
5650-0-19-01-16-01-10-0 evaluate
US $.34 - .34 / Piece

Circuit Board Hardware - PCB .035 PC RECPT .295L

Product Details

Quick Details

LED Size :	3 mm	Illumination Color :	Green
Lens Color/Style :	Tinted, Diffused	Wavelength :	565 nm
Luminous Intensity :	2.1 mcd	Mounting Type :	Through Hole
Viewing Angle :	50 deg	Packaging :	Bulk

Description

LED Size : 3 mm
Mounting Type : Through Hole
Illumination Color : Green
Lens Color/Style : Tinted, Diffused
Wavelength : 565 nm
Packaging : Bulk
Viewing Angle : 50 deg
Luminous Intensity : 2.1 mcd

Pinout

Specifications

Part Number: 5650F5LC
Serial Number: 5650F
Emitted color: Green
Lens color: Green
Lum in min (mcd): 1
Lum in typ (mcd): 2
Rated current (mA): 2
Cont forward current max: 30
Fwd volts type: 2,1
Forward volt max.: 2,8
Reverse breakdown V: 5
Viewing angle (°): 50
Peak wave length (mA): 565
Housing type: UL94V-0
RoHS Status: Yes

Description

CML LED assemblies 5650F5LC are available in both right angle and vertical package and utilize the CML IT line of high quality LEDs. Parts range in voltage from 2V to 12V and in current from 2mA to 20mA. The UL94V0 housings ensure proper LED alignment.
