BOARD LEVEL HEAT SINK
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Capacitance : | 16.5 pF | Series: | - |
Manufacturer: | Aavid Thermalloy | Type: | Board Level |
Package Cooled: | Multiwatt, SIP | Attachment Method: | Clip and PC Pin |

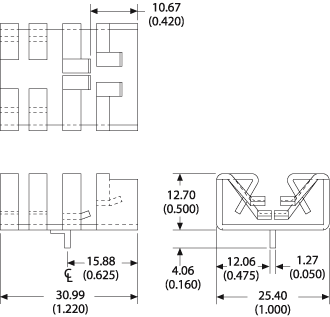

Shape: | Rectangular | Length: | 1.220" (30.99mm) |
Width: | 1.000" (25.40mm) | Diameter: | - |
Height Off Base (Height of Fin): | 0.500" (12.70mm) | Power Dissipation @ Temperature Rise: | 3W @ 40°C |
Thermal Resistance @ Forced Air Flow: | 4°C/W @ 300 LFM | Thermal Resistance @ Natural: | 11.5°C/W |
Material: | Aluminum |
Part # | Description | Finish | Board Mounting |
566010B03100G | Plug in style heat sink with solderable tabs | Black Anodize | View Hole Dimensions |
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component. |
Thermal Resistance | 11.50 |
Technical/Catalog Information | 566010B03100G |
Vendor | Aavid Thermalloy |
Category | Thermal Management |
Attachment Method | Clip and PC Pin |
Height | 1.22" (30.99mm) |
Material | Aluminum |
Package Cooled | - |
Power Dissipation @ Temperature Rise | 3W @ 40°C |
Thermal Resistance @ Forced Air Flow | 4°C/W @ 300 LFM |
Outline | 25.40mm x 12.70mm |
Thermal Resistance @ Natural | 11.5°C/W |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | 566010B03100G 566010B03100G |
