576802B03200G

Diameter: -
Material: Aluminum
Material Finish: Black Anodized
Series: -
Shape: Rectangular
Type: Board Level, Vertical
Length: 0.750" (19.05mm)
Height Off Base (Height of Fin): 0.500" (12.70mm)
Attachment Method: Clip and PC Pin
Thermal Resistance @ Forced Air Flow: 7.0°C/W @ 400 LFM
Manufacturer: Aavid Thermalloy
Power Dissipation @ Temperature Rise: 1W @ 30°C
Package Cooled: TO-220, TO-262
Width: 0.500" (12.70mm)
Thermal Resistance @ Natural: 27.3°C/W

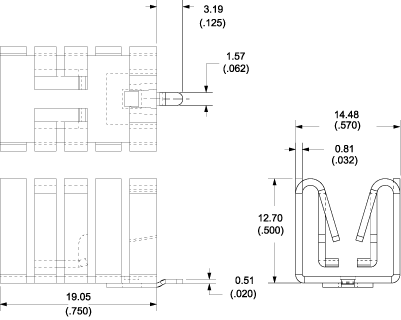

Pinout




Specifications

Part #	Description	Finish	Board Mounting
576802B03200G	Plug in style heat sink featuring four spring action clips and single tab for vertical mounting	Black Anodize	View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.

Description

Thermal Resistance

27.30

Thermal resistance value of 576802B03200G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information	576802B03200G
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Clip and PC Pin
Height	0.75" (19.05mm)
Material	Aluminum
Package Cooled	TO-220, TO-262
Power Dissipation @ Temperature Rise	1W @ 30°C
Thermal Resistance @ Forced Air Flow	7.0°C/W @ 400 LFM
Outline	14.48mm x 12.70mm
Thermal Resistance @ Natural	27.3°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	576802B03200G 576802B03200G
