580400B00000G: Heat Sinks BLK HEAT SINK DIP-20

580400B00000G Data Sheet

US $ .54~.54 / Piece | Get Latest Price

Part Number:: 580400B00000G
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~5680

Unit Price
$.54

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5804 evaluate
Features: *1.5 A Maximum Output Current* 35 V Output Sustaining Voltage* Wave-Drive, Two-Phase, an...
58040-1 evaluate
US $3258 - 3258 / Piece

Hand Tools RIBBON CABLE APPL MTA 156
58043-1000 evaluate
US $.17 - .2 / Piece

Cable Mounting & Accessories CABLE CRAMP SET CABLE CRAMP SET

Product Details

Quick Details

Product :	Heatsinks	Mounting Style :	Slide On
Heatsink Material :	Aluminum	Fin Style :	Staggered
Thermal Resistance :	39 C / W	Length :	28.58 mm
Width :	17.78 mm	Height :	14.12 mm
Designed for :	DIP-20

Description

Product : Heatsinks
Heatsink Material : Aluminum
Fin Style : Staggered
Width : 17.78 mm
Mounting Style : Slide On
Thermal Resistance : 39 C / W
Length : 28.58 mm
Height : 14.12 mm
Designed for : DIP-20

Pinout

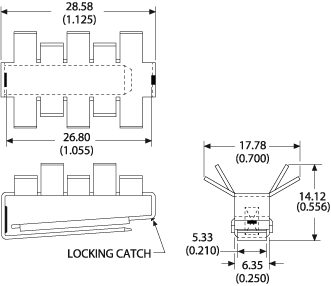

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
580400B00000G	Slide on heat sink with staggered fins for 20 pin DIP packages	Black Anodize	N/A

Description

Thermal Resistance

39.00

Thermal resistance value of 580400B00000G is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	580400B00000G
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Clip
Height	0.57" (14.5mm)
Material	Aluminum
Package Cooled	20-DIP
Power Dissipation @ Temperature Rise	2W @ 60°C
Thermal Resistance @ Forced Air Flow	20.0°C/W @ 200 LFM
Outline	28.58mm x 17.78mm
Thermal Resistance @ Natural	39°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	580400B00000G 580400B00000G HS181 ND HS181ND HS181
