591202B03800G

BOARD LEVEL HEAT SINK

product image

591202B03800G Picture
SeekIC No. : 003444848 Detail

591202B03800G: BOARD LEVEL HEAT SINK

floor Price/Ceiling Price

US $ .33~.33 / Piece | Get Latest Price
Part Number:
591202B03800G
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~12000
  • Unit Price
  • $.33
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Capacitance : 16.5 pF Series: -
Manufacturer: Aavid Thermalloy Type: Board Level
Package Cooled: TO-220, TO-262 Attachment Method: Clip and PC Pin
Shape: Rectangular Length: 0.600" (15.24mm)
Width: 0.500" (12.70mm) Diameter: -
Height Off Base (Height of Fin): 0.500" (12.70mm) Power Dissipation @ Temperature Rise: 1W @ 40°C
Thermal Resistance @ Forced Air Flow: 16.0°C/W @ 200 LFM Thermal Resistance @ Natural: 26.8°C/W
Material: Aluminum

Description

Type: Board Level
Diameter: -
Material: Aluminum
Material Finish: Black Anodized
Series: -
Shape: Rectangular
Height Off Base (Height of Fin): 0.500" (12.70mm)
Attachment Method: Clip and PC Pin
Manufacturer: Aavid Thermalloy
Thermal Resistance @ Forced Air Flow: 16.0°C/W @ 200 LFM
Package Cooled: TO-220, TO-262
Width: 0.500" (12.70mm)
Length: 0.600" (15.24mm)
Power Dissipation @ Temperature Rise: 1W @ 40°C
Thermal Resistance @ Natural: 26.8°C/W


Pinout

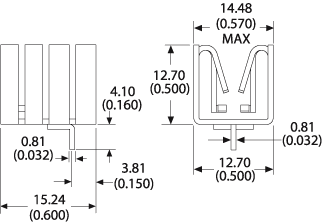

  Connection Diagram


Specifications

Part # Description Finish Board Mounting
591202B03800G Plug in style heat sink featuring four spring action clips and horizontal mounting tab Black Anodize View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.




Description

Thermal Resistance 26.80

Thermal resistance value of 591202B03800G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information591202B03800G
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodClip and PC Pin
Height0.6" (15.24mm)
MaterialAluminum
Package CooledTO-220, TO-262
Power Dissipation @ Temperature Rise1W @ 40°C
Thermal Resistance @ Forced Air Flow16.0°C/W @ 200 LFM
Outline14.48mm x 12.70mm
Thermal Resistance @ Natural26.8°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 591202B03800G
591202B03800G
