593101B03600G

Heat Sinks TO-218/TO-247 VERT

product image

593101B03600G Picture
See larger image
SeekIC No. : 002534121 Detail

593101B03600G: Heat Sinks TO-218/TO-247 VERT

593101B03600G Data Sheet

floor Price/Ceiling Price

US $ .65~.65 / Piece | Get Latest Price
Part Number:
593101B03600G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~3120
  • Unit Price
  • $.65
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Mounting Style : Through Hole
Heatsink Material : Aluminum Fin Style : Folded Back
Thermal Resistance : 8.6 C / W Length : 12.7 mm
Width : 24.77 mm Height : 41.66 mm
Designed for : TO-218, TO-247

Description

Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : Through Hole
Thermal Resistance : 8.6 C / W
Length : 12.7 mm
Fin Style : Folded Back
Designed for : TO-218, TO-247
Width : 24.77 mm
Height : 41.66 mm


Pinout

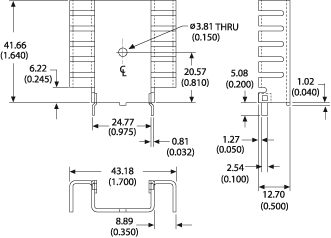

Connection Diagram


Specifications

Part # Description Finish Board Mounting
593101B03600G Channel style heat sink with folded back fins and solderable tabs Black Anodize View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.




Description

Thermal Resistance 8.60

Thermal resistance value of 593101B03600G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information593101B03600G
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodBolt On and PC Pin
Height1.64" (41.66mm)
MaterialAluminum
Package CooledTO-218
Power Dissipation @ Temperature Rise6W @ 50°C
Thermal Resistance @ Forced Air Flow4°C/W @ 300 LFM
Outline43.18mm x 12.70mm
Thermal Resistance @ Natural8.6°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 593101B03600G
593101B03600G
