6380BG: Heat Sinks TO220/218 W/SOLDER PINS

6380BG Data Sheet

US $ 1.7~2.51 / Piece | Get Latest Price

Part Number:: 6380BG
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~1
1~100
100~500
500~1000

Unit Price
$2.51
$2.2
$1.82
$1.7

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

6380 evaluate
Test Connectors K-TYPE FEMALE MIN
6380 SL001 evaluate
US $1469.01 - 1483.86 / Piece

Multi-Paired Cable 22AWG10PR SHIELD 1000ft SPOOL SLATE
6380 SL002 evaluate
US $832.56 - 844.37 / Piece

Multi-Paired Cable 22AWG10PR SHIELD 500ft SPOOL SLATE

Product Details

Quick Details

Product :	Heatsinks	Mounting Style :	Through Hole
Heatsink Material :	Aluminum	Length :	25.4 mm
Width :	41.91 mm	Height :	25.4 mm
Designed for :	TO-220, TO-218

Description

Fin Style :
Thermal Resistance :
Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : Through Hole
Height : 25.4 mm
Length : 25.4 mm
Width : 41.91 mm
Designed for : TO-220, TO-218

Pinout

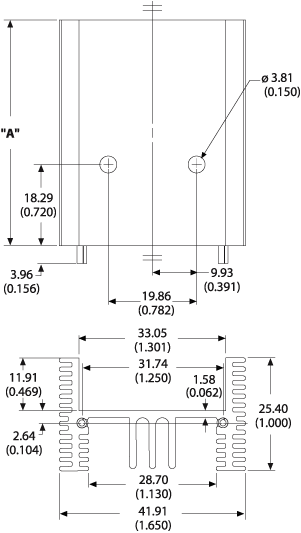

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
6380BG	High power extruded heat sink with solderable pins	Black Anodize	View Hole Dimensions

Description

Thermal Resistance

6.80

Thermal resistance 6380BG value is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	6380BG
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Bolt On and PC Pin
Height	1" (25.4mm)
Material	Aluminum
Package Cooled	TO-220, TO-218
Power Dissipation @ Temperature Rise	6W @ 50°C
Thermal Resistance @ Forced Air Flow	3.5°C/W @ 200 LFM
Outline	41.91mm x 25.40mm
Thermal Resistance @ Natural	6.8°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	6380BG 6380BG
