Part Number: 74ABTH16245B
Description: The 74ABT16245B high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high out...
- Table of contents:
74ABTH16245B
-
Suppliers
DataSheet
General Description
74ABTH16245B General Description
The 74ABT16245B high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive.
The 74ABT16245B device is a dual octal transceiver featuring non-inverting 3-State bus compatible outputs in both send and receive directions. The control function implementation minimizes external timing requirements. The device features two Output Enable (1OE , 2OE ) inputs for easy cascading and two Direction (1DIR, 2DIR) inputs for direction control.
Two options are available, 74ABT16245B which does not have the bus hold feature and the 74ABTH16245B which incorporates the bus hold feature.
74ABTH16245B Maximum Ratings
| SYMBOL | PARAMETER | CONDITIONS | RATING | UNIT |
| VCC | DC supply voltage | 0.5 to +7.0 | V | |
| IIK | DC input diode current | VI < 0 |
18 | mA |
| VI | DC input voltage3 | 1.2 to +7.0 | V | |
| IOK | DC output diode current | VO < 0 | 50 | mA |
| VOUT | DC output voltage3 | output in Off or High state | 0.5 to +5.5 | V |
| IOUT | DC output current | output in Low state | 128 | mA |
| Output in High state | -64 | mA | ||
| Tstg | Storage temperature range | 65 to 150 | °C |
74ABTH16245B Features
• 16-bit bidirectional bus interface
• Power-up 3-State
• Multiple VCC and GND pins minimize switching noise
• 3-State buffers
• Output capability: +64 mA/32mA
• Latchup protection exceeds 500mA per JEDEC Std 17
• Live insertion/extraction permitted
• ESD protection exceeds 2000 V per MIL STD 883 Method 3015 and 200V per Machine Model
• 74ABTH16245B incorporates bus hold data inputs which eliminate the need for external pull-up resistors to hold unused inputs
• Bus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputs
• Power-up 3-State
• Multiple VCC and GND pins minimize switching noise
• 3-State buffers
• Output capability: +64 mA/32mA
• Latchup protection exceeds 500mA per JEDEC Std 17
• Live insertion/extraction permitted
• ESD protection exceeds 2000 V per MIL STD 883 Method 3015 and 200V per Machine Model
• 74ABTH16245B incorporates bus hold data inputs which eliminate the need for external pull-up resistors to hold unused inputs
• Bus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputs

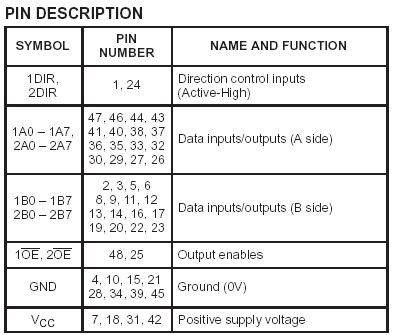

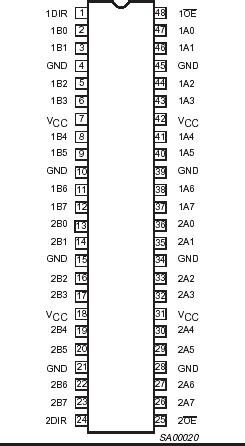

74ABTH16245B Connection Diagram
74ABTH16245BDGG
