Purchase 74AC245SJ, In-stock 74AC245SJ From SeekIC.
MFG:NS Package Cooled:SOP
Part Number: 74AC245SJ
MFG: NS
Package Cooled: SOP
Description: The AC/ACT245 contains eight non-inverting bidirectional buffers with 3-STATE outputs and is intended ...
- Table of contents:
74AC245SJ
-
Suppliers
DataSheet
General Description
74AC245SJ General Description
The AC/ACT245 contains eight non-inverting bidirectional buffers with 3-STATE outputs and is intended for bus-oriented applications. Current sinking capability is 24 mA at both the A and B ports. The Transmit/Receive (T/R) input determines the direction of data flow through the bidirectional transceiver. Transmit (active-HIGH) enables data from A ports to B ports; Receive (active-LOW) enables data from B ports to A ports. The Output Enable input, when HIGH, disables both A and B ports by placing them in a HIGH Z condition.
74AC245SJ Maximum Ratings
Supply Voltage (VCC).................. −0.5V to +7.0V
DC Input Diode Current (IIK)
VI = −0.5V ......................................... −20 mA
VI = VCC + 0.5V................................. +20 mA
DC Input Voltage (VI) .........−0.5V to VCC + 0.5V
DC Output Diode Current (IOK)
VO = −0.5V........................................ −20 mA
VO = VCC + 0.5V +20 mA
DC Output Voltage (VO) ......−0.5V to VCC + 0.5V
DC Output Source
or Sink Current (IO)............................ ±50 mA
DC VCC or Ground Current
per Output Pin (ICC or IGND)............... ±50 mA
Storage Temperature (TSTG)... −65°C to +150°C
Junction Temperature (TJ)
PDIP ......................................................140°C
DC Input Diode Current (IIK)
VI = −0.5V ......................................... −20 mA
VI = VCC + 0.5V................................. +20 mA
DC Input Voltage (VI) .........−0.5V to VCC + 0.5V
DC Output Diode Current (IOK)
VO = −0.5V........................................ −20 mA
VO = VCC + 0.5V +20 mA
DC Output Voltage (VO) ......−0.5V to VCC + 0.5V
DC Output Source
or Sink Current (IO)............................ ±50 mA
DC VCC or Ground Current
per Output Pin (ICC or IGND)............... ±50 mA
Storage Temperature (TSTG)... −65°C to +150°C
Junction Temperature (TJ)
PDIP ......................................................140°C
74AC245SJ Features
ICC and IOZ reduced by 50%
Noninverting buffers
Bidirectional data path
A and B outputs source/sink 24 mA
ACT245 has TTL-compatible inputs
Noninverting buffers
Bidirectional data path
A and B outputs source/sink 24 mA
ACT245 has TTL-compatible inputs
74AC245SJ Connection Diagram
74AC245SJ
PDF/DataSheet Download
- Datasheet: 74AC245SJ
- File Size: 104199 KB
- Manufacturer: FAIRCHILD [Fairchild Semiconductor]
- Click here to Download
- ·74ABH16244ADGG
- PHILIPS [Philips Semiconductors]
- 16-bit buffer/line driver 3-State
- 77546 KB
- ·74ABH16244ADL
- PHILIPS [Philips Semiconductors]
- 16-bit buffer/line driver 3-State
- 77546 KB
- ·74ABT00
- PHILIPS [Philips Semiconductors]
- Quad 2-input NAND gate
- 97320 KB
- ·74ABT00D
- PHILIPS [Philips Semiconductors]
- Quad 2-input NAND gate
- 97320 KB
- ·74ABT00DB
- PHILIPS [Philips Semiconductors]
- Quad 2-input NAND gate
- 97320 KB
- ·74ABT00N
- PHILIPS [Philips Semiconductors]
- Quad 2-input NAND gate
- 97320 KB
- ·74ABT00PW
- PHILIPS [Philips Semiconductors]
- Quad 2-input NAND gate
- 97320 KB
- ·74ABT00PWDH
- PHILIPS [Philips Semiconductors]
- Quad 2-input NAND gate
- 97320 KB
74AC245SJ Relative Products

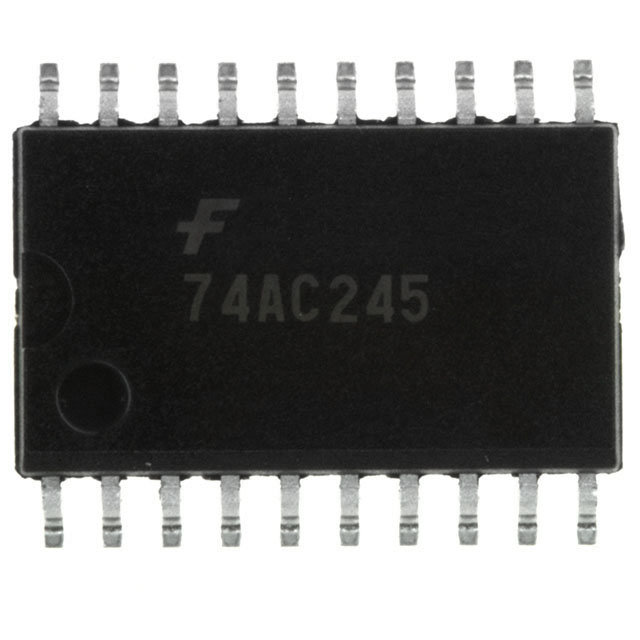

74AC245SCX
