74ACT16245SSC

Output Type : 3-State
Packaging : Tube
Logic Type : CMOS
Supply Voltage - Max : 5.5 V
Maximum Operating Temperature : + 85 C
High Level Output Current : - 24 mA
Low Level Output Current : 24 mA
Supply Voltage - Min : 4.5 V
Output Level : CMOS
Input Level : TTL
Number of Channels per Chip : 16
Package / Case : SSOP-48
Propagation Delay Time : 8.4 ns
Logic Family : ACT


Features:

Bidirectional non-inverting buffers
Separate control logic for each byte
16-bit version of the ACT245
Outputs source/sink 24 mA
TTL-compatible inputs

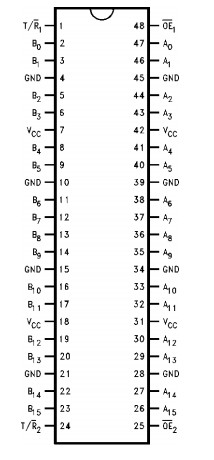

Pinout




Specifications

Supply Voltage (V_CC).................. −0.5V to +7.0V
DC Input Diode Current (I_IK)
    V_I = −0.5V ......................................... −20 mA
    V_I = VCC + 0.5V................................. +20 mA
DC Input Voltage (V_I) .........−0.5V to V_CC + 0.5V
DC Output Diode Current (I_OK)
    V_O = −0.5V........................................  −20 mA
    V_O = V_CC + 0.5V +20 mA
DC Output Voltage (V_O) ......−0.5V to V_CC + 0.5V
DC Output Source
    or Sink Current (I_O)............................ ±50 mA
DC V_CC or Ground Current
    per Output Pin (I_CC or I_GND)............... ±50 mA
Storage Temperature (T_STG)... −65°C to +150°C


Description

The 74ACT16245SSC contains sixteen non-inverting bidirectional buffers with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. Each has separate control inputs which can be shorted together for full 16-bit operation. The T/R inputs determine the direction of data flow through the device. The OE inputs disable both the A and B ports by placing them in a high impedance state.

Parameters:

Technical/Catalog Information	74ACT16245SSC
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Number of Drivers/Receivers	16/16
Type	Transceiver
Voltage - Supply	4.5 V ~ 5.5 V
Package / Case	48-SSOP
Packaging	Tube
Protocol	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	74ACT16245SSC 74ACT16245SSC
