74ACT16540

Features: Separate control logic for each byteOutputs source/sink 24 mATTL-compatible inputsPinoutSpecificationsSupply Voltage (VCC ) 0.5V to,- 7.0VDC Input Diode Current (IIK )VI =- 0.5V -20 mAVI=VCC,0.5V ,20 mADC Output Diode Current (IOK)VO= - 0.5V -20 mAVO=VCC,0.5V ,20 mADC Output Voltage (VO...

product image

74ACT16540 Picture
See larger image
SeekIC No. : 004249025 Detail

74ACT16540: Features: Separate control logic for each byteOutputs source/sink 24 mATTL-compatible inputsPinoutSpecificationsSupply Voltage (VCC ) 0.5V to,- 7.0VDC Input Diode Current (IIK )VI =- 0.5V -20 mAVI=...

74ACT16540 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74ACT16540
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Separate control logic for each byte
Outputs source/sink 24 mA
TTL-compatible inputs


Pinout

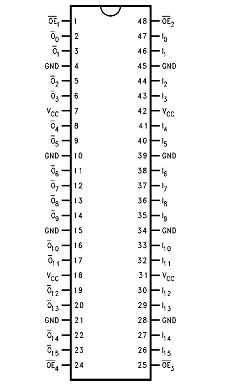

Connection Diagram


Specifications

Supply Voltage (VCC )               0.5V to ,- 7.0V
DC Input Diode Current (IIK )
VI = - 0.5V                                            -20 mA
VI = VCC , 0.5V                                     ,20 mA
DC Output Diode Current (IOK)
VO = - 0.5V                                           -20 mA
VO =VCC , 0.5V                                      ,20 mA
DC Output Voltage (VO)      - 0.5V to VCC ,0.5V
DC Output Source/Sink Current (IO )   ±50 mA
DC VCC  or Ground Current
per Output Pin                                    ± 50 mA
Storage Temperature                -65 to , 150




Description

The 74ACT16540 contains sixteen inverting buffers with 3-STATE outputs designed to be employed as a memory and address driver, clock driver, or bus-oriented transmitter/receiver. The device is byte controlled. Each byte has sep-arate 3-STATE control inputs of the 74ACT16540 which can be shortedtogether for full 16-bit operation.
