Part Number: 74ALVC162374
Description: The ALVC162374 contains sixteen non-inverting D-type flip-flops with 3-STATE...
- Table of contents:
74ALVC162374
-
Suppliers
DataSheet
General Description
74ALVC162374 General Description
The ALVC162374 contains sixteen non-inverting D-type flip-flops with 3-STATE outputs and is intended for bus orientd applications. The device is byte controlled. A buffered clock (CP) and output enable (OE) are common to each byte and can be shorted together for full 16-bit operation.
The ALVC162374 is also designed with 26 series resistors in the outputs. This design reduces line noise in applications such as memory address drivers, clock drivers and bus transceivers/transmitters.
The 74ALVC162374 is designed for low voltage (1.65V to 3.6V) VCC applications with I/O compatibility up to 3.6V. The 74ALVC162374 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining low CMOS power dissipation.
74ALVC162374 Maximum Ratings
Supply Voltage (VCC) −0.5V to +4.6V
DC Input Voltage (VI) −0.5V to 4.6V
Output Voltage (VO) (Note 3) −0.5V to VCC +0.5V
DC Input Diode Current (IIK)
VI < 0V −50 mA
DC Output Diode Current (IOK)
VO < 0V −50 mA
DC Output Source/Sink Current
(IOH/IOL) ±50 mA
DC VCC or GND Current per
Supply Pin (ICC or GND) ±100 mA
Storage Temperature Range (TSTG) −65°C to +150°C
Note 2: The Absolute Maximum Ratings are those values beyond which the safety of the device cannot be guaranteed. The device should not be operated at these limits. The parametric values defined in the Electrical Characteristics tables are not guaranteed at the Absolute Maximum Ratings. The "Recommended Operating Conditions" table will define the conditions for actual device operation.
Note 3: IO Absolute Maximum Rating must be observed.
DC Input Voltage (VI) −0.5V to 4.6V
Output Voltage (VO) (Note 3) −0.5V to VCC +0.5V
DC Input Diode Current (IIK)
VI < 0V −50 mA
DC Output Diode Current (IOK)
VO < 0V −50 mA
DC Output Source/Sink Current
(IOH/IOL) ±50 mA
DC VCC or GND Current per
Supply Pin (ICC or GND) ±100 mA
Storage Temperature Range (TSTG) −65°C to +150°C
Note 2: The Absolute Maximum Ratings are those values beyond which the safety of the device cannot be guaranteed. The device should not be operated at these limits. The parametric values defined in the Electrical Characteristics tables are not guaranteed at the Absolute Maximum Ratings. The "Recommended Operating Conditions" table will define the conditions for actual device operation.
Note 3: IO Absolute Maximum Rating must be observed.
74ALVC162374 Features
` 1.65V3.6V VCC supply operation
` 3.6V tolerant inputs and outputs
` 26 series resistors in outputs
` tPD (CLK to On)
3.9 ns max for 3.0V to 3.6V VCC
5.3 ns max for 2.3V to 2.7V VCC
9.6 ns max for 1.65V to 1.95V VCC
` Power-off high impedance inputs and outputs
` Supports live insertion and withdrawal (Note 1)
` Uses patented noise/EMI reduction circuitry
` Latchup conforms to JEDEC JED78
` ESD performance:
Human body model > 2000V
Machine model > 200V
Note 1: To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pull-up resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.
` 3.6V tolerant inputs and outputs
` 26 series resistors in outputs
` tPD (CLK to On)
3.9 ns max for 3.0V to 3.6V VCC
5.3 ns max for 2.3V to 2.7V VCC
9.6 ns max for 1.65V to 1.95V VCC
` Power-off high impedance inputs and outputs
` Supports live insertion and withdrawal (Note 1)
` Uses patented noise/EMI reduction circuitry
` Latchup conforms to JEDEC JED78
` ESD performance:
Human body model > 2000V
Machine model > 200V
Note 1: To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pull-up resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.

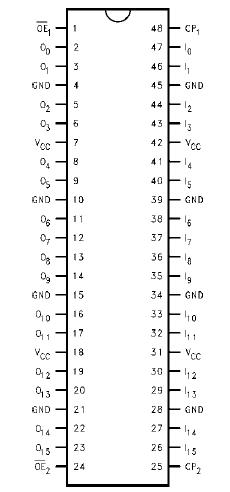

74ALVC162374 Connection Diagram
74ALVC162374
