74AVC16373

Features:

* Wide supply voltage range from 1.2 to 3.6 V
* Complies with JEDEC standard no. 8-1A/5/7
* CMOS low power consumption
* Input/output tolerant up to 3.6 V
* Dynamic Controlled Output (DCO) circuit dynamically changesoutputimpedance,resultinginnoisereduction
   without speed degradation
* LowinductancemultipleVCC andGNDpinstominimize noise and ground bounce
* Supports Live Insertion.

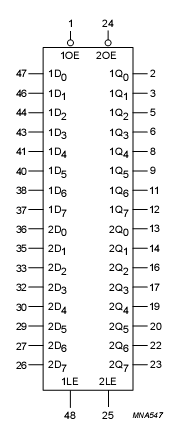

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	RATING	UNIT
VCC	DC supply voltage		0.5 to +7.0	V
IIK	DC input diode current	VI < 0	18	mA
VI	DC input voltage3		1.2 to +7.0	V
IOK	DC output diode current	VO < 0	50	mA
VOUT	DC output voltage3	output in Off or High state	0.5 to +5.5	V
IOUT	DC outpputut current	output in Low state	128	mA
		output in High state	64
Tstg	Storage temperature range		65 to 150	°C

Description

The 74AVC16373 is a 16-bit D-type transparent latch featuring separate D-type inputs for each latch, and 3-state outputs for bus oriented applications. One Latch Enable (LE) input and one Output Enable (OE) input are provided per 8-bit section. The 74AVC16373 consist of two sections of eight D-type transparent latches with 3-state true outputs.

The 74AVC16373 is designed to have an extremely fast propagation delay and a minimum amount of power consumption.

To ensure the high-impedance output state during power-up or power-down, pin OEn should be tied to VCC through a pull-up resistor (Live Insertion).

A Dynamic Controlled Output (DCO) of the 74AVC16373 circuitry is implemented to support termination line drive during transient (see Figs 1 and 2).
