74F298

Features:

• Fully synchronous operation
• Select from two data sources
• Buffered, negative edge triggered clock
• Provides the equivalent of function capabilities of two separate MSI functions (74F157 and 74F175)

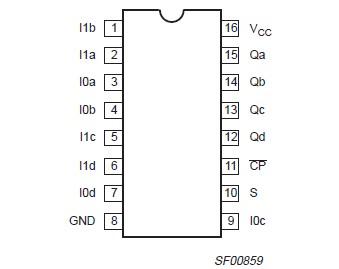

Pinout




Specifications

WWW.ALLDATASHEET.COM


Description

The 74F298 is a high speed Quad 2-Input Multiplexer with storage. It selects 4 bits of data from two sources (ports) under the control of a common Select input (S). The selected data of the 74F298 is transferred to the 4-bit output register synchronous with the High-to-Low transition of the clock (CP ). The 4-bit register is fully edge triggered. The data inputs (I0 and I1) and Select input (S) must be stable only one setup time prior to the High-to-Low transition of the clock for predictable operation.
