74F3040

Features:

• 30 line driver
• 160mA output drive capability in the Low state
• 67mA output drive capability in the High state
• High speed
• Facilitates incident wave switching
• 3nh lead inductance each on V_CC and GND when both side pins are used

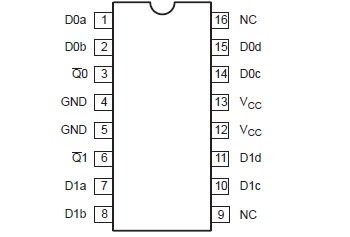

Pinout




Specifications

SYMBOL	PARAMETER	RATING	UNIT
VCC	Supply voltage	0.5 to +7.0	V
VIN	Input voltage	0.5 to +7.0	V
IIN	Input current	30 to +5	mA
VOUT	Voltage applied to output in High output state	0.5 to VCC	V
IOUT	Current applied to output in Low output state	320	mA
Tamb	Operating free-air temperature range	0 to +70	°C
Tstg	Storage temperature range	65 to +150	°C

Description

The 74F3040 is a high current Line Driver composed of two 4-input NAND gates. It has been designed to deal with the transmission line effects of PC boards which appear when fast edge rates are used.

The drive capability of the 74F3040 is 67mA source and 160mA sink with a V_CC as low as 4.5V. This guarantees incident wave switching with V_OH not less than 2.0V and V_OL not more than 0.8V while driving impedances as low as 30. This is applicable with any combination of outputs using continuous duty.

The propagation delay of the part is minimally affected by reflections of the 74F3040 when terminated only by the TTL inputs of other devices. Performance may be improved by full or partial line termination.
