The 74HC1G/HCT1G08 is a high-speed Si-gate CMOS device.
The 74HC1G/HCT1G08 provides the 2-input AND function. The standard output currents are 1/2 compared to the 74HC/HCT08.
74HC1G08 Maximum Ratings
| SYMBOL | PARAMETER | CONDITIONS | MIN. | MAX. | UNIT |
| VCC | supply voltage | -0.5 | +7.0 | V | |
| IIK | input diode current | VI < -0.5 V or VI > VCC + 0.5 V; note 1 | - | ±20 | mA |
| IOK | output diode current | VO < -0.5 V or VO > VCC + 0.5 V; note 1 | - | ±20 | mA |
| IO | output source or sink current | -0.5 V < VO < VCC + 0.5 V; note 1 | - | ±12.5 | mA |
| ICC | VCC or GND current | note 1 | - | ±25 | mA |
| Tstg | storage temperature | -65 | +150 | °C | |
| PD | power dissipation per package | for temperature range from -40 to +125 °C;note 2 | - | 200 | mW |
1. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.
2. Above 55 °C the value of PD derates linearly with 2.5 mW/K.
74HC1G08 Features
· Wide supply voltage range from 2.0 to 6.0 V
· Symmetrical output impedance
· High noise immunity
· Low power dissipation
· Balanced propagation delays
· Very small 5 pins package
· Output capability: standard.
· Symmetrical output impedance
· High noise immunity
· Low power dissipation
· Balanced propagation delays
· Very small 5 pins package
· Output capability: standard.
74HC1G08 Connection Diagram
74HC1G08
PDF/DataSheet Download
- Datasheet: 74HC1G08
- File Size: 75679 KB
- Manufacturer: PHILIPS [Philips Semiconductors]
- Click here to Download
- ·74H00
- ETC [ETC]
- QUAD 2-INPUT NAND GATE
- 62068 KB
- ·74H00DC
- ETC [ETC]
- QUAD 2-INPUT NAND GATE
- 62068 KB
- ·74H00FC
- ETC [ETC]
- QUAD 2-INPUT NAND GATE
- 62068 KB
- ·74H00PC
- ETC [ETC]
- QUAD 2-INPUT NAND GATE
- 62068 KB
- ·74H11
- ETC [ETC]
- TRIPLE 3-INPUT AND GATE
- 57988 KB
- ·74H11DC
- ETC [ETC]
- TRIPLE 3-INPUT AND GATE
- 57988 KB
- ·74H11FC
- ETC [ETC]
- TRIPLE 3-INPUT AND GATE
- 57988 KB
- ·74H11PC
- ETC [ETC]
- TRIPLE 3-INPUT AND GATE
- 57988 KB
74HC1G08 Relative Products
74HC1G04GW,165
IC INVERTER SC88A-5
74HC1G04GW,125
IC INVERTER SC88A-5

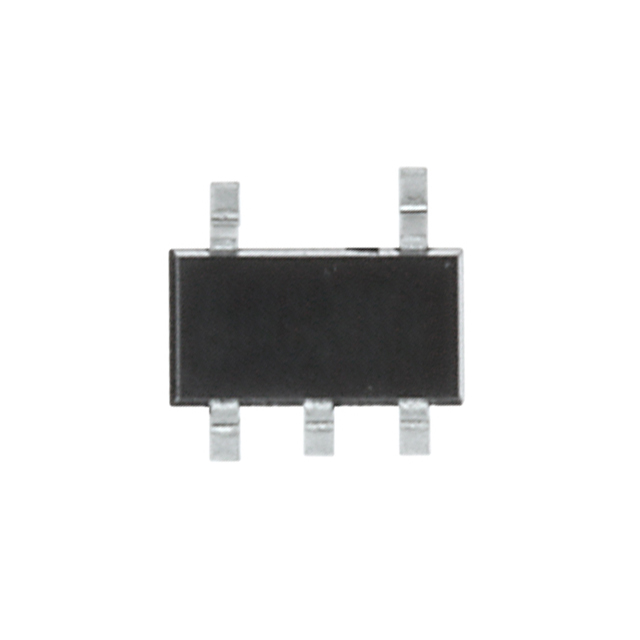

74HC1G04GV,125
