Purchase 74HCT03, In-stock 74HCT03 From SeekIC.
MFG:PHI Package Cooled:SMD-14
Part Number: 74HCT03
MFG: PHI
Package Cooled: SMD-14
Description: The 74HC/HCT03 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL ...
- Table of contents:
74HCT03
-
Suppliers
DataSheet
General Description
74HCT03 General Description
The 74HC/HCT03 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A.
The 74HC/HCT03 provide the 2-input NAND function.
The 74HC/HCT03 have open-drain N-transistor outputs, which are not clamped by a diode connected to VCC. In the OFF-state, i.e. when one input is LOW, the output may be pulled to any voltage between GND and VOmax. This allows the device to be used as a LOW-to-HIGH or HIGH-to-LOW level shifter. For digital operation and OR-tied output applications, these devices must have a pull-up resistor to establish a logic HIGH level.
74HCT03 Maximum Ratings
Limiting values in accordance with the Absolute Maximum System (IEC 134)
Voltages are referenced to GND (ground = 0 V)
Voltages are referenced to GND (ground = 0 V)
| SYMBOL | PARAMETER | MIN. | MAX. | UNIT | CONDITIONS |
| VCC | DC supply voltage | -0.5 | +7 | V | |
| VO | DC output voltage | -0.5 | +7 | V | |
| IIK | DC input diode current | 20 | mA | for VI < -0.5 V or VI > VCC + 0.5 V | |
| -IOK | DC output diode current | 20 | mA | for VO < -0.5 V | |
| -IO | DC output sink current | 25 | mA | for - 0.5 V < VO | |
| ±ICC; ±IGND |
DC VCC or GND current | 50 | mA | ||
| Tstg | storage temperature range | -65 | +150 | °C | |
| Ptot |
power dissipation per package plastic DIL |
750 | mW | for temperature range; -40 to +125 °C 74HC/HCT above +70 °C: derate linearly with 12 mW/K | |
| plastic mini-pack (SO) | 500 | mW | above +70 °C: derate linearly with 8 mW/K |
74HCT03 Features
· Level shift capability
· Output capability: standard (open drain)
· ICC category: SSI
· Output capability: standard (open drain)
· ICC category: SSI
74HCT03 Connection Diagram
74H00
PDF/DataSheet Download
- Datasheet: 74H00
- File Size: 62068 KB
- Manufacturer: ETC [ETC]
- Click here to Download
- ·74H00DC
- ETC [ETC]
- QUAD 2-INPUT NAND GATE
- 62068 KB
- ·74H00FC
- ETC [ETC]
- QUAD 2-INPUT NAND GATE
- 62068 KB
- ·74H00PC
- ETC [ETC]
- QUAD 2-INPUT NAND GATE
- 62068 KB
- ·74H11
- ETC [ETC]
- TRIPLE 3-INPUT AND GATE
- 57988 KB
- ·74H11DC
- ETC [ETC]
- TRIPLE 3-INPUT AND GATE
- 57988 KB
- ·74H11FC
- ETC [ETC]
- TRIPLE 3-INPUT AND GATE
- 57988 KB
- ·74H11PC
- ETC [ETC]
- TRIPLE 3-INPUT AND GATE
- 57988 KB
- ·74H1G66
- STMICROELECTRONICS [STMicroelectronics]
- SINGLE BILATERAL SWITCH
- 63205 KB
74HCT03 Relative Products
74HCT02N,652
IC GATE NOR QUAD 2INPUT 14DIP

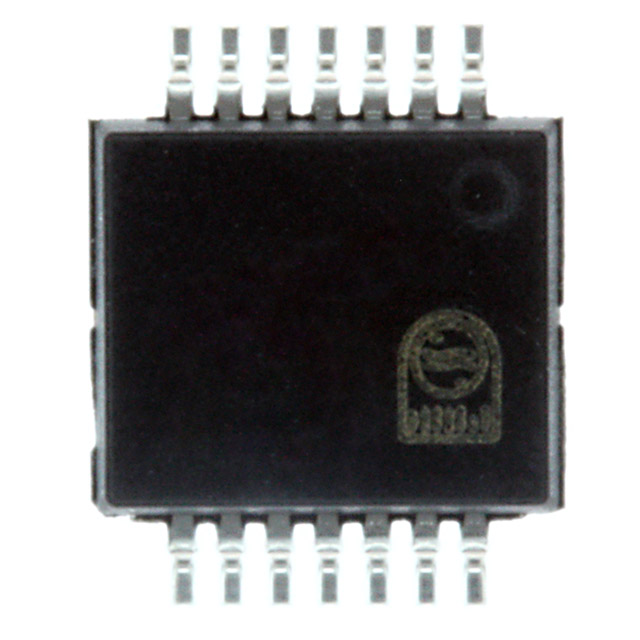

74HCT02DB,112
