74LCX16245A

AbsoluteMaximumRatingsarethose values beyond whichdamage to the device may occur. Functional operation under these condition isnot implied.
1) IO absolute maximum ratingmust be observed
2)V_O <GND, V_O >V_CC

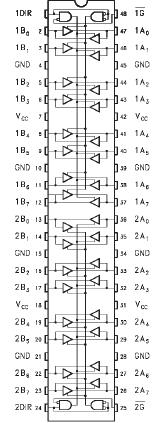

The 74LCX16245A is a low voltage CMOS 16-BIT BUS TRANSCEIVER (3-STATE) fabricated with sub-micron silicon gate and double-layer metal wiring C²MOS technology. It is ideal for low power and high speed 3.3V applications; it can be interfaced to 5V signal environment for both inputs and outputs.

This IC of the 74LCX16245A is intended for two-way asynchronous communication between data buses; the direction of data trasmission is determined by DIR input.

The two enable inputs nG of the 74LCX16245A can be used to disable the device so that the buses are effectively isolated. It has better speed performance at 3.3V than 5V LSTTL family combined with the true CMOS low power consumption.

All inputs and outputs of the 74LCX16245A are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage.

IT IS PROHIBITED TO APPLY A SIGNAL TO A TERMINAL WHEN IT IS IN OUTPUT MODE AND WHEN A BUS THERMINAL IS FLOATING (HIGH IMPEDANCE STATE) IT IS REQUESTED TO FIX THE INPUT LEVEL BY MEANS OF EXTERNAL PULL DOWN OR PULL UP RESISTOR.
