74LCX16500 General Description
These 18-bit universal bus transceivers combine D-type latches and D-type flip-flops to allow data flow in transparent, latched, and clocked modes.
Data flow in each direction is controlled by output-enable (OEAB and OEBA), latch-enable (LEAB and LEBA), and clock (CLKAB and CLKBA) inputs.
The LCX16500 is designed for low voltage (2.5V or 3.3V) VCC applications with the capability of interfacing to a 5V signal environment.
The LCX16500 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power.
74LCX16500 Maximum Ratings
74LCX16500 Features
5V tolerant inputs and outputs
2.3V3.6V VCC specifications provided
6.0 ns tPD max (VCC = 3.3V), 20 µA ICC max
Power down high impedance inputs and outputs
Supports live insertion/withdrawal (Note 1)
±24 mA output drive (VCC = 3.0V)
Uses patented noise/EMI reduction circuitry
Latch-up performance exceeds 500 mA
ESD performance:
Human body model > 2000V
Machine model > 200V
Also packaged in plastic Fine-Pitch Ball Grid Array(FBGA)

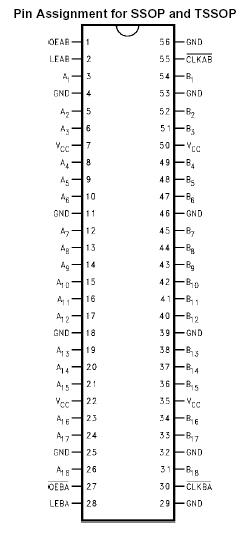

74LCX16500 Connection Diagram
