Features: 5V TOLERANT INPUTS AND OUTPUTSHIGH SPEED:tPD = 7.0 ns (MAX.) at VCC = 3VPOWER DOWN PROTECTION ON INPUTS AND OUTPUTSSYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 24mA (MIN) at VCC = 3VPCI BUS LEVELS GUARANTEED AT 24 mABALANCED PROPAGATION DELAYS: tPLH ≅ tPHLOPERATING VOLTAGE RANGE: VC...
74LCX245: Features: 5V TOLERANT INPUTS AND OUTPUTSHIGH SPEED:tPD = 7.0 ns (MAX.) at VCC = 3VPOWER DOWN PROTECTION ON INPUTS AND OUTPUTSSYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 24mA (MIN) at VCC = 3VPCI BUS...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
US $.23 - .39 / Piece
Gates (AND / NAND / OR / NOR) Quad 2-Input NAND Gate with 5V Tol Inp
5V TOLERANT INPUTS AND OUTPUTS
HIGH SPEED:tPD = 7.0 ns (MAX.) at VCC = 3V
POWER DOWN PROTECTION ON INPUTS AND OUTPUTS
SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 24mA (MIN) at VCC = 3V
PCI BUS LEVELS GUARANTEED AT 24 mA
BALANCED PROPAGATION DELAYS: tPLH ≅ tPHL
OPERATING VOLTAGE RANGE: VCC(OPR) = 2.0V to 3.6V (1.5V Data Retention)
PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 245
LATCH-UP PERFORMANCE EXCEEDS 500mA (JESD 17)
ESD PERFORMANCE:
HBM > 2000V (MIL STD 883 method 3015);MM > 200V
Symbol | Parameter | Value | Unit |
VCC | Supply Voltage | -0.5 to +7.0 | V |
VI | DC Input Voltage | -0.5 to +7.0 | V |
VO | DC Output Voltage (OFF State) | -0.5 to +7.0 | V |
VO | DC Output Voltage (High or Low State) (note 1) | -0.5 to VCC + 0.5 | V |
IIK | DC Input Diode Current | - 50 | mA |
IOK | DC Output Diode Current (note 2) | - 50 | mA |
IO | DC Output Current | ± 50 | mA |
ICC | DC Supply Current per Supply Pin | ± 100 | mA |
IGND | DC Ground Current per Supply Pin | ± 100 | mA |
Tstg | Storage Temperature | -65 to +150 | °C |
TL | Lead Temperature (10 sec) | 300 | °C |
Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
---|---|---|---|---|---|---|---|---|
74LCX245BQX | Full Production | Green | $0.54 | DQFN | 20 | TAPE REEL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: LCX245 | |
74LCX245MSA | Full Production | RoHS Compliant | $0.64 | SSOP | 20 | RAIL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: LCX245 | |
74LCX245MSAX | Full Production | RoHS Compliant | $0.64 | SSOP | 20 | TAPE REEL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: LCX245 | |
74LCX245MTC | Full Production | RoHS Compliant | $0.207 | TSSOP | 20 | RAIL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: LCX245 | |
74LCX245MTCX | Full Production | RoHS Compliant | $0.207 | TSSOP | 20 | TAPE REEL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: LCX245 | |
74LCX245SJ | Full Production | RoHS Compliant | $0.303 | SOP | 20 | RAIL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: LCX245 | |
74LCX245SJX | Full Production | RoHS Compliant | $0.303 | SOP | 20 | TAPE REEL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: LCX245 | |
74LCX245WM | Full Production | RoHS Compliant | $0.23 | SOIC-Wide | 20 | RAIL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: LCX245 | |
74LCX245WMX | Full Production | RoHS Compliant | $0.23 | SOIC-Wide | 20 | TAPE REEL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: LCX245 |
* Fairchild 1,000 piece Budgetary Pricing |
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product 74LCX245 is available. Click here for more information . |

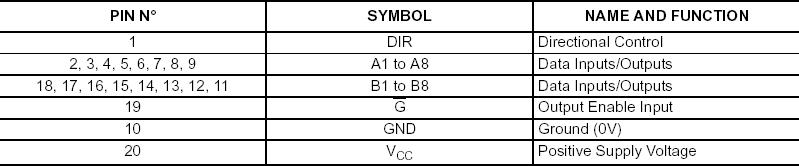

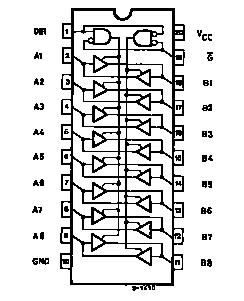

The 74LCX245 contains eight non-inverting bidirectional buffers with 3-STATE outputs and is intended for bus oriented applications. The device is designed for low voltage (2.5V and 3.3V) VCC applications with capability of interfacing to a 5V signal environment. The T/R# input of the 74LCX245 determines the direction of data flow through the device. The OE# input disables both the A and B ports by placing them in a high impedance state.
The 74LCX245 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
