74LCXH162373

Features:

5V tolerant control inputs and outputs
2.3V3.6V VCC specifications provided
Equivalent 26 series resistors on outputs
Bushold on inputs eliminates the need for external pull-up/pull-down resistors
6.2 ns tPD max (VCC = 3.3V), 20 µA|CC max
Power down high impedance inputs and outputs
±12 mA output drive (VCC = 3.0V)
Implements patented noise/EMI reduction circuitry
Latch-up performance exceeds 500 mA
ESD performance:Human body model > 2000V Machine model > 200V
Also packaged in plastic Fine-Pitch Ball Grid Array(FBGA) (Preliminary)

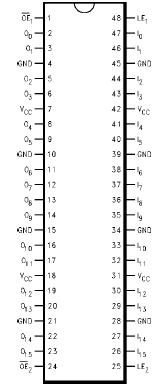

Pinout




Specifications

Symbol	Parameter	Value	Conditions	Units
VCC	Supply Voltage	−0.5 to +7.0		V
VI	DC Input Voltage I0 - I15 OE1, CPn	−0.5 to VCC + 0.5 −0.5 to +7.0		V
VO	DC Output Voltage	−0.5 to +7.0 −0.5 to VCC + 0.5	Output in 3-STATE Output in HIGH or LOW State (Note 3)	V
IIK	DC Input Diode Current	−50	VI < GND	mA
IOK	DC Output Diode Current	−50 +50	VO < GND VO > VCC	mA
IO	DC Output Source/Sink Current	+50		mA
ICC	DC Supply Current per Supply Pin	±100		mA
IGND	DC Ground Current per Ground Pin	±100		mA
TSTG	Storage Temperature	−65 to +150		°C

Description

The 74LCXH162373 contains sixteen non-inverting latches with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. The flip-flops appear transparent to the data when the Latch Enable (LE) is HIGH. When LE is LOW, the data that meets the setup time is latched. Data appears on the bus when the Output Enable (OE) is LOW. When OE is HIGH, the outputs are in a high impedance state.

The 74LCXH162373 is designed for low voltage (2.5V or 3.3V)VCC applications with capability of interfacing to a 5V signal environment. The 26Ω series resistor helps
reduce output overshoot and undershoot.

The 74LCXH162373 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
The 74LCXH162373 data inputs include active bushold circuitry, eliminating the need for external pull-up resistors to hold unused or floating data inputs at a valid logic level.
