Purchase 74LS299, In-stock 74LS299 From SeekIC.
Package Cooled:DIP
Part Number: 74LS299
Package Cooled: DIP
Description: The SN54/74LS299 is an 8-Bit Universal Shift /Storage Register with 3-state outputs. Four modes of ope...
- Table of contents:
74LS299
-
Suppliers
DataSheet
General Description
74LS299 General Description
The SN54/74LS299 is an 8-Bit Universal Shift /Storage Register with 3-state outputs. Four modes of operation are possible: hold (store), shift left, shift right and load data.
The parallel load inputs and flip-flop outputs are multiplexed to reduce the total number of package pins. Separate outputs are provided for flip-flops Q0 and Q7 to allow easy cascading. A separate active LOW Master Reset is used to reset the register.
74LS299 Features
• Common I/O for Reduced Pin Count
• Four Operation Modes: Shift Left, Shift Right, Load and Store
• Separate Shift Right Serial Input and Shift Left Serial Input for Easy Cascading
• 3-State Outputs for Bus Oriented Applications
• Input Clamp Diodes Limit High-Speed Termination Effects
• ESD > 3500 Volts
• Four Operation Modes: Shift Left, Shift Right, Load and Store
• Separate Shift Right Serial Input and Shift Left Serial Input for Easy Cascading
• 3-State Outputs for Bus Oriented Applications
• Input Clamp Diodes Limit High-Speed Termination Effects
• ESD > 3500 Volts

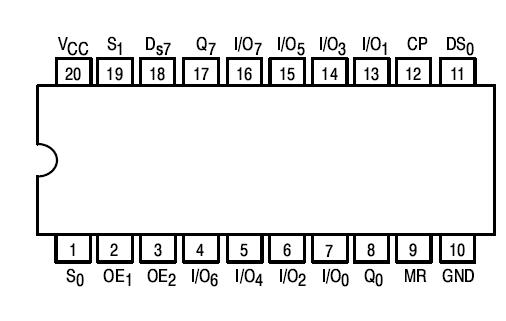

74LS299 Connection Diagram
74L71
PDF/DataSheet Download
- Datasheet: 74L71
- File Size: 105703 KB
- Manufacturer: TI [Texas Instruments]
- Click here to Download
