74LVT16373A

Features:

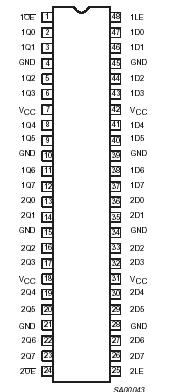

Pinout

Specifications

SYMBOL	PARAMETER	CONDITIONS	RATING	UNIT
VCC	DC supply voltage		0.5 to +4.6	V
IIK	DC input diode current	VI < 0	50	mA
VI	DC input voltage3		0.5 to +7.0	V
IOK	DC output diode current	VO < 0	50	mA
VOUT	DC output voltage3	Output in Off or High state	0.5 to +7.0	V
IOUT	DC output current	Output in Low state	128	mA
		Output in High state	64
Tstg	Storage temperature range		65 to +150	°C

Description

The 74LVT16373A is a high-performance BiCMOS product designed for VCC operation at 3.3V.

The 74LVT16373A is a 16-bit transparent D-type latch with non-inverting 3-State bus compatible outputs. The device can be used as two 8-bit latches or one 16-bit latch. When enable (E) input is High, the Q outputs follow the data (D) inputs. When enable is taken Low, the Q outputs are latched at the levels of the D inputs one setup time prior to the High-to-Low transition.
