Description: The LVTH162374 contains sixteen non-inverting D-type flip-flops with 3-STATE outputs and is intended f...
The LVTH162374 contains sixteen non-inverting D-type flip-flops with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. A buffered clock (CP) and Output Enable (OE) are common to each byte and can be shorted together for full 16-bit operation.
The LVTH162374 is designed with equivalent 25 series resistance in both the HIGH and LOW states of the output.This design reduces line noise in applications such as memory address drivers, clock drivers, and bus transceivers/transmitters.
The LVTH162374 data inputs include bushold, eliminating the need for external pull-up resistors to hold unused inputs.
These flip-flops are designed for low-voltage (3.3V) VCC applications, but with the capability to provide a TTL interface to a 5V environment. The LVTH162374 is fabricated with an advanced BiCMOS technology to achieve high speed operation similar to 5V ABT while maintaining a low power dissipation.

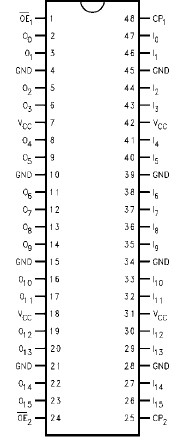

| Symbol | Parameter | Value | Conditions | Units |
| VCC | Supply Voltage | -0.5 to +4.6 | V | |
| VI | DC Input Voltage | -0.5 to +7.0 | V | |
| VO | DC Output Voltage | -0.5 to +7.0 | Output in 3-STATE | V |
| -0.5 to +7.0 | Output in HIGH or LOW State (Note 3) | |||
| IIK | DC Input Diode Current | -50 | VI < GND | mA |
| IOK | DC Output Diode Current | -50 | VO < GND | mA |
| IO | DC Output Current | 64 | VO > VCC Output at HIGH State | mA |
| 128 | VO > VCC Output at LOW State | |||
| ICC | DC Supply Current per Supply Pin | ±64 | mA | |
| IGND | DC Ground Current per Ground Pin | ±128 | mA | |
| TSTG | Storage Temperature | -65 to +150 |
Input and output interface capability to systems at 5V VCC
Bushold data inputs eliminate the need for external pull-up resistors to hold unused inputs
Live insertion/extraction permitted
Power Up/Power Down high impedance provides glitch-free bus loading
Outputs include equivalent series resistance of 25 to make external termination resistors unnecessary and reduce overshoot and undershoot
Functionally compatible with the 74 series 16374
Latch-up performance exceeds 500 mA
ESD performance:
Human-body model > 2000V
Machine model > 200V
Charged-device model > 1000V
Also packaged in plastic Fine-Pitch Ball Grid Array (FBGA) (Preliminary)
