MFG:TI Package Cooled:TSSOP
MFG: TI
Package Cooled: TSSOP
Description: The LVT16374 and LVTH16374 contain sixteen non-invert-ing D-type flip-flops with 3-STATE output...
The LVT16374 and LVTH16374 contain sixteen non-invert-ing D-type flip-flops with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled.A buffered clock (CP) and Output Enable ( OE) are com-mon to each byte and can be shorted together for full 16-bit operation.
The LVTH16374 data inputs include bushold, eliminating the need for external pull-up resistors to hold unused inputs.
These flip-flops are designed for low-voltage (3.3V) VCC applications, but with the capability to provide a TTL inter-face to a 5V environment. The LVT16374 and LVTH16374 are fabricated with an advanced BiCMOS technology to achieve high speed operation similar to 5V ABT while maintaining a low power dissipation.

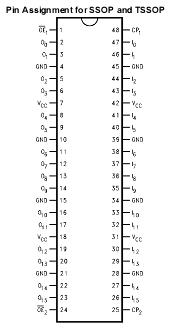

| Symbol | Parameter | Value | Conditions | Units |
| VCC | Supply Voltage | 0.5 to 4.6 |
V | |
| VI | DC Input Voltage | -0.5 to 7.0 | V | |
| VO | DC Output Voltage | -0.5 to 7.0 | Output in 3-STATE | V |
| -0.5 to 7.0 | Output in High or Low State (Note 4) | |||
| ICC | DC Input Diode Current | -50 | VI GND |
mA |
| IOK | DC Output Diode Current | -50 | VOGND | mA |
| IO | DC Output Current | 64 | VO VCC Output at High State |
mA |
| 128 | VO VCC Output at Low State | |||
| ICC | DC Supply Current per Supply Pin | ±64 |
mA | |
| IGND | I DC Ground Current per Ground Pin |
±128 |
mA | |
| TSTG | Storage Temperature | -65 to 150 |
* Input and output interface capability to systems at 5V VCC
*Bushold data inputs eliminate the need for external pull-up resistors to hold unused inputs (74LVTH16374),also available without bushold feature (74LVT16374)
*Live insertion/extraction permitted
*Power Up/Power Down high impedance provides glitch-free bus loading
*Outputs source/sink 32 mA/ 64 mA
*Functionally compatible with the 74 series 16374
*Latch-up performance exceeds 500 mA
*ESD performance:
Human-body model 2000V
Machine model 200V
Charged-device model 1000V
*Also packaged in plastic Fine-Pitch Ball Grid Array (FBGA)
74LVTH16374
PDF/DataSheet Download
