Features:

 Input and output interface capability to systems at 5V VCC
 Bushold data inputs eliminate the need for external pull-up resistors to hold unused inputs
 Live insertion/extraction permitted
 Power up/down high impedance provides glitch-free bus loading
 Outputs source/sink −32 mA/+64 mA
 Functionally compatible with the 74 series 16501
 ESD Performance:
    Human-Body Model > 2000V
    Machine Model > 200V
    Charged-Device Model > 1000V


Pinout

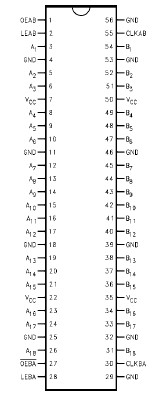

Connection Diagram


Specifications

Symbol Parameter Value Conditions Units
VCC Supply Voltage -0.5 to +4.6   V
VI DC Input Voltage -0.5 to +7.0   V
VO DC Output Voltage -0.5 to +7.0 Output in 3-STATE V
-0.5 to +7.0 Output in HIGH or LOW State (Note 5) V
IIK DC Input Diode Current -50 VI < GND mA
IOK DC Output Diode Current -50 VO < GND mA
IO DC Output Current 64 VO > VCC    Output at HIGH State mA
128 VO > VCC    Output at LOW State
ICC DC Supply Current per Supply Pin ±64   mA
IGND DC Ground Current per Ground Pin ±128   mA
TSTG Storage Temperature -65 to +150



Description

The 74LVTH16501 is an 18-bit universal bus transceiver combining D-type latches and D-type flip-flops to allow data flow in transparent, latched, and clocked modes.

Data flow in each direction is controlled by output-enable (OEAB and OEBA), latch-enable (LEAB and LEBA), and clock (CLKAB and CLKBA) inputs.

The 74LVTH16501 data inputs include bushold, eliminating the need for external pull-up resistors to hold unused inputs.

The transceiver is designed for low voltage (3.3V) VCC applications, but with the capability to provide a TTL interface to a 5V environment. The LVTH16501 is fabricated with an advanced BiCMOS technology to achieve high speed operation similar to 5V ABT while maintaining low power dissipation.
