74LVTH244A

Features: *Octal bus interface*3-State buffers*Output capability: +64mA/-32mA*TTL input and output switching levels*Input and output interface capability to systems at 5V supply*Bus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputs*Power-up 3-State*Live inser...

product image

74LVTH244A Picture
See larger image
SeekIC No. : 004251571 Detail

74LVTH244A: Features: *Octal bus interface*3-State buffers*Output capability: +64mA/-32mA*TTL input and output switching levels*Input and output interface capability to systems at 5V supply*Bus-hold data inputs...

74LVTH244A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74LVTH244A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Octal bus interface
*3-State buffers
*Output capability: +64mA/-32mA
*TTL input and output switching levels
*Input and output interface capability to systems at 5V supply
*Bus-hold data inputs eliminate the need for external pull-up
  resistors to hold unused inputs
*Power-up 3-State
*Live insertion/extraction permitted
*No bus current loading when output is tied to 5V bus
*Latch-up protection exceeds 500mA per JEDEC Std 17
*ESD protection exceeds 2000V per MIL STD 883 Method 3015
  and 200V per Machine Model


Pinout

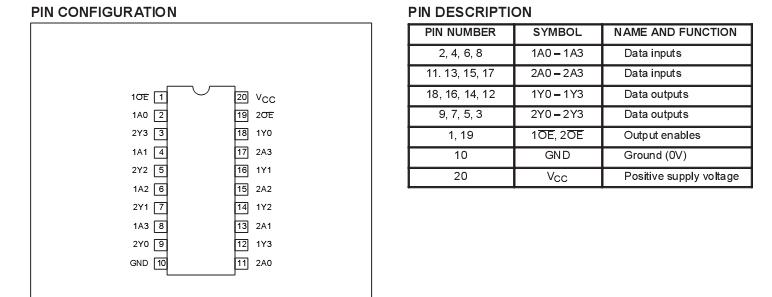

Connection Diagram


Specifications

SYMBOL
PARAMETER
CONDITIONS
RATING
UNIT
VCC
 DC supply voltage
0.5 to +4.6
V
VIN
 DC input voltage3
0.5 to +7.0
V
IIN
 DC output voltage3
Output in Off or High state
0.5 to +7.0
V
VOUT
 DC output current
Output in Low state
128
mA
Output in High state
64
IOUT
 DC input diode current
VI < 0
50
mA
Tamb
 DC output diode current
VO < 0
50
mA
Tstg
 Storage temperature range
65 to 150

°C



Description

The 74LVTH244A is a high-performance BiCMOS product designed for VCCoperation at 3.3V.

This 74LVTH244A is an octal buffer that is ideal for driving bus lines. The device features two Output Enables (LE1,LE2),each controlling four of the 3-State outputs.
