Part Number: 74V2G02
Description: The 74V2G02 is an advanced high-speed CMOS DUAL 2-INPUT NOR GATE fabricated with sub-micron silicon ga...
- Table of contents:
74V2G02
-
Suppliers
DataSheet
General Description
74V2G02 General Description
The 74V2G02 is an advanced high-speed CMOS DUAL 2-INPUT NOR GATE fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology.
The internal circuit is composed of 3 stages including buffer output, which provide high noise immunity and stable output.
Power down protection is provided on all inputs and 0 to 7V can be accepted on inputs with no regard to the supply voltage. This device can be used to interface 5V to 3V.
74V2G02 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VCC |
Supply Voltage |
-0.5 to +7.0 |
V |
|
VI |
DC Input Voltage |
-0.5 to +7.0 |
V |
|
VO |
DC Output Voltage |
-0.5 to VCC + 0.5 |
V |
|
IIK |
DC Input Diode Current |
-20 |
mA |
|
IOK |
DC Output Diode Current |
±20 |
mA |
|
IO |
DC Output Current |
±25 |
mA |
|
ICC or IGND |
DC VCC or Ground Current |
±50 |
mA |
|
Tstg |
Storage Temperature |
-65 to +150 |
|
|
TL |
Lead Temperature (10 sec) |
260 |
operation under these conditions is not implied
74V2G02 Features
` HIGH SPEED: tPD = 3.6ns (TYP.) at VCC = 5V
` LOW POWER DISSIPATION: ICC = 1A (MAX.) at TA = 25
` HIGH NOISE IMMUNITY: VNIH = VNIL = 28% VCC (MIN.)
` POWER DOWN PROTECTION ON INPUTS
` SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 8mA (MIN) at VCC = 4.5V
` BALANCED PROPAGATION DELAYS: tPLH tPHL
` OPERATING VOLTAGE RANGE: VCC(OPR) = 2V to 5.5V
` IMPROVED LATCH-UP IMMUNITY
` LOW POWER DISSIPATION: ICC = 1A (MAX.) at TA = 25
` HIGH NOISE IMMUNITY: VNIH = VNIL = 28% VCC (MIN.)
` POWER DOWN PROTECTION ON INPUTS
` SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 8mA (MIN) at VCC = 4.5V
` BALANCED PROPAGATION DELAYS: tPLH tPHL
` OPERATING VOLTAGE RANGE: VCC(OPR) = 2V to 5.5V
` IMPROVED LATCH-UP IMMUNITY

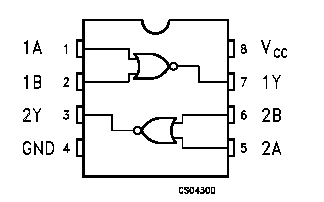

74V2G02 Connection Diagram
74V2G02
