Part Number: 7534

MFG: IOR

Package Cooled: SSOP-8

D/C: 04+

Description: The 7534 Group is the 8-bit microcomputer based on the 740 family ore technology.The 7534 Group has a USB, 8-bit ti...

7534 General Description

The 7534 Group is the 8-bit microcomputer based on the 740 family ore technology.
The 7534 Group has a USB, 8-bit timers, and an A/D converter, and s useful for an input device for personal computer peripherals.

7534 Maximum Ratings

Symbol	Parameter	Conditions	Ratings	Unit
V_CC	Power source voltage	All voltages are based on VSS. Output transistors are cut off.	0.3 to 7.0	V
V_I	Input voltageP00P07, P10P16, P20P27, P30 P37, VREF, P40, P41		0.3 to VCC + 0.3	V
V_I	Input voltageRESET, XIN		0.3 to V_CC + 0.3	V
V_I	Input voltageCNVSS (Note 1)		0.3 to 13	V
V_O	Output voltageP00P07, P10P16, P20P27, P30 P37, XOUT, USBVREFOUT, P40, P41		0.3 to V_CC+ 0.3	V
P_d	Power dissipation (Note 2)	Ta = 25°C	1000 (Note 3)	mW
T_opr	Operating temperature		20 to 85
T_stg	Storage temperature		40 to 125

7534 Features

* Basic machine-language instructions....................................... 69
* The minimum instruction execution time.......................... 0.34 s
             (t 6 MHz oscillation frequency for the shortest instruction)
* Memory size
                             ROM.............................................8K to 16K bytes
                          RAM ..............................................256 to 384 bytes
* Programmable I/O ports...................................... 28 (36-pin type)
.    .......................................................................... 24 (32-pin type)
      .......................................................................... 33 (42-pin type)
* Interrupts .................................................... 14 sources, 8 vectors
* Timers ............................................................................ 8-bit*3
* Serial I/O1 ................................ used only for Low Speed in USB
                                                             (based on USBSpec. Rev.1.1)
                                                                                        (USB/UART)
* Serial I/O2 ...................................................................... 8-bit*1
                                                                        (Clock-synchronized)
* A/D converter ................................................ 10-bit*8 channels
* Clock generating circuit............................................. Built-in type
(connect to external ceramic resonator or quartz-crystal oscillator )
* Watchdog timer ............................................................ 16-bit *1
* Power source voltage
At 6 MHz X oscillation frequency at ceramic resonator
          ..............................4.1 to 5.5 V(4.4 to 5.25 V at USB operation)
* Power dissipation ............................................ 30 mW (standard)
* Operating temperature range................................... 20 to 85 °C
                                                                 ( 0 to70 °C at USB operation)
*Built-in USB 3.3 V Regulator + transceiver based on USB Spec.Rev.1.1

7534 Typical Application

Input device for personal computer peripherals

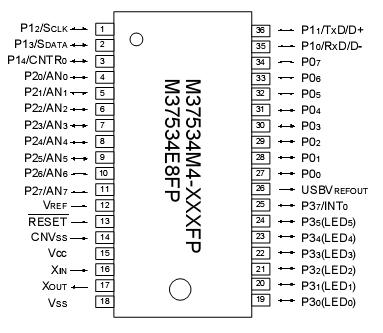

7534 Connection Diagram

7534 datasheet

7534
PDF/DataSheet Download

Datasheet: 7534
File Size: 624845 KB
Manufacturer: RENESAS [Renesas Technology Corp]
Click here to Download

·7530Axxxx
ETC
2580797 KB
·7531 GROUP
Mitsubishi
SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER
646462 KB
·7532 GROUP
Mitsubishi
SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER
536626 KB
·7536 GROUP
Mitsubishi
SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER
486166 KB

Related Part Number

7534 Relative Products

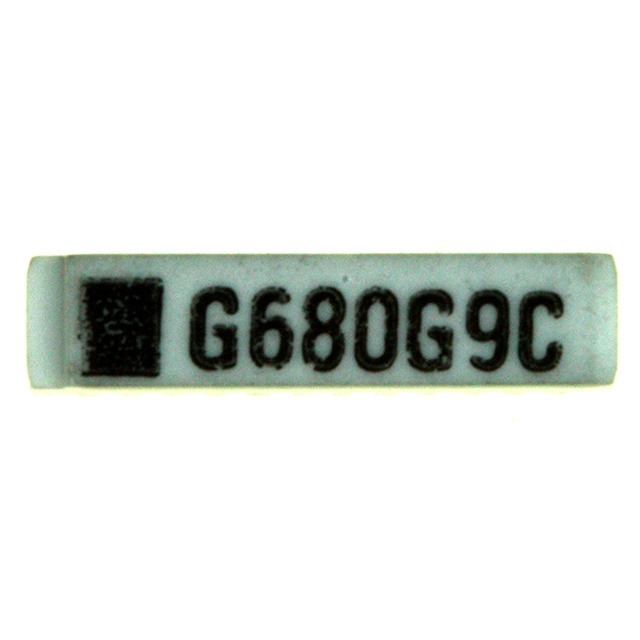

75324G680GTR
