Part Number: 7536 Group
Description: The 7536 Group is the 8-bit microcomputer based on the 740 family core technology.The 7536 Group has a USB, 8-b...
- Table of contents:
7536 Group
-
Suppliers
DataSheet
General Description
7536 Group General Description
The 7536 Group is the 8-bit microcomputer based on the 740 family core technology.
The 7536 Group has a USB, 8-bit timers, and an A-D converter, and is useful for an input device for personal computer peripherals.
7536 Group Maximum Ratings
| Symbol | Parameter | Conditions | Ratings | Unit |
| VCC | Power source voltage | All voltages are based on VSS. Output transistors are cut off. |
0.3 to 7.0 | V |
| VI | Input voltage P00P07, P10P16, P20P27, P30P37, VREF, P40, P41 | 0.3 to VCC + 0.3 | V | |
| VI | Input voltage RESET, XIN | 0.3 to VCC + 0.3 | V | |
| VI | Input voltage CNVSS (Note) | 0.3 to 13 | V | |
| VO | Output voltage P00P07, P10P16, P20P27, P30 P37, XOUT, USBVREFOUT, P40, P41 |
0.3 to VCC + 0.3 | V | |
| Pd | Power dissipation | Ta = 25°C | 1000 | mW |
| Topr | Operating temperature | 20 to 85 | °C | |
| Tstg | Storage temperature | 40 to 125 | °C |
7536 Group Features
. Basic machine-language instructions....................................... 69
. The minimum instruction execution time.......................... 0.34 s
(at 6 MHz oscillation frequency for the shortest instruction)
. Memory size
ROM.....................................................................8K to 16K bytes
RAM ....................................................................256 to 384 bytes
. Programmable I/O ports........................................................... 33
. Interrupts ....................................................14 sources, 8 vectors
. Timers ............................................................................ 8-bit* 3
. Serial I/O1 ................................ used only for Low Speed in USB
(USB/UART)
. Serial I/O2 ...................................................................... 8-bit ? 1
(Clock-synchronized)
. A-D converter ................................................ 10-bit ? 8 channels
. Clock generating circuit............................................. Built-in type
(connect to external ceramic resonator or quartz-crystal oscillator )
. Watchdog timer ............................................................ 16-bit *1
. Power source voltage
At 6 MHz XIN oscillation frequency at ceramic resonator
...................................................................................4.1 to 5.5 V
. Power dissipation ............................................ 30 mW (standard)
. Operating temperature range................................... 20 to 85 °C
. The minimum instruction execution time.......................... 0.34 s
(at 6 MHz oscillation frequency for the shortest instruction)
. Memory size
ROM.....................................................................8K to 16K bytes
RAM ....................................................................256 to 384 bytes
. Programmable I/O ports........................................................... 33
. Interrupts ....................................................14 sources, 8 vectors
. Timers ............................................................................ 8-bit* 3
. Serial I/O1 ................................ used only for Low Speed in USB
(USB/UART)
. Serial I/O2 ...................................................................... 8-bit ? 1
(Clock-synchronized)
. A-D converter ................................................ 10-bit ? 8 channels
. Clock generating circuit............................................. Built-in type
(connect to external ceramic resonator or quartz-crystal oscillator )
. Watchdog timer ............................................................ 16-bit *1
. Power source voltage
At 6 MHz XIN oscillation frequency at ceramic resonator
...................................................................................4.1 to 5.5 V
. Power dissipation ............................................ 30 mW (standard)
. Operating temperature range................................... 20 to 85 °C
7536 Group Typical Application
Input device for personal computer peripherals

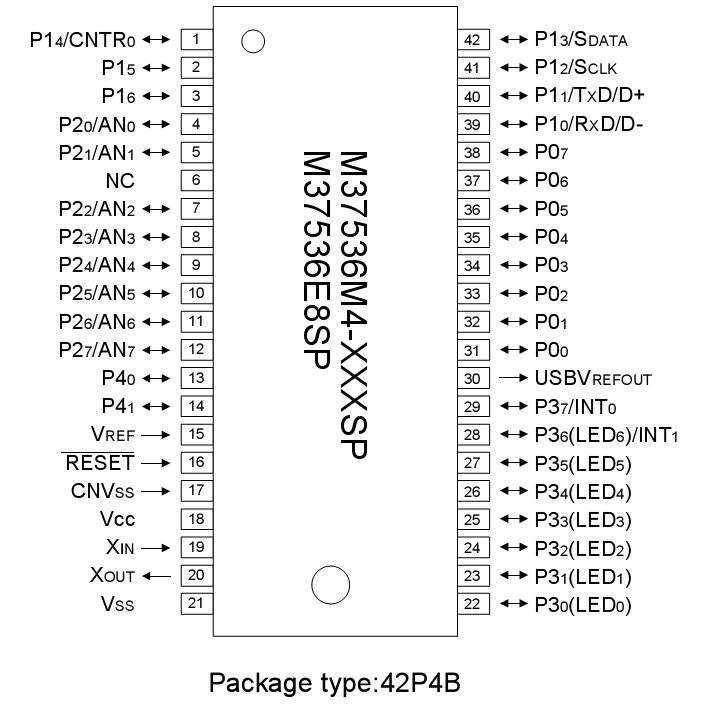

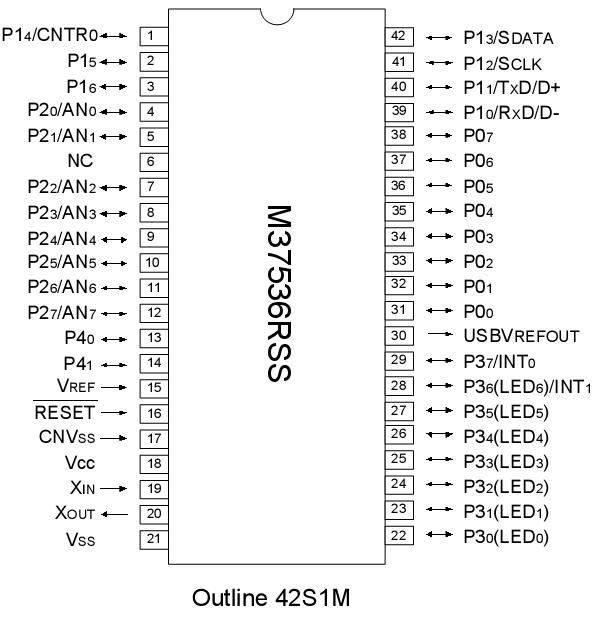

7536 Group Connection Diagram
7536 GROUP
