Circuit Board Hardware - PCB CERAMIC THRD 1.500

product image

7672 Picture
SeekIC No. : 002524833 Detail

7672: Circuit Board Hardware - PCB CERAMIC THRD 1.500

floor Price/Ceiling Price

US $ 1.24~2.38 / Piece | Get Latest Price
Part Number:
7672
Mfg:
Keystone Electronics
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~100
  • 100~500
  • 500~1000
  • Unit Price
  • $2.38
  • $1.37
  • $1.27
  • $1.24
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : Standoffs, Ceramic Length : 1.5 in
Outside Diameter : 0.375 in Thread Size : 6-32

Description

Thread Size : 6-32
Length : 1.5 in
Type : Standoffs, Ceramic
Outside Diameter : 0.375 in


Features:

• 12-bit high speed A/D converter
• RAD-PAK® radiation-hardened against natural space radiation
• Total dose hardness:
- > 100 krad (Si), depending upon space mission
• Excellent Single Event Effect
- SEL > 120 Mev/mg/cm2
- SEUTH > 5.8 Mev/mg/cm2
- SEUSat = -1E-4 cm2/Device
• Package:
- 24 pin RAD-PAK® flat package
- 24 pin RAD-PAK® DIP
• Fast conversion times:
- 7672-05: 5 µs
• Low 110 mW typical power consumption
- Corrects all single-bit errors
- Detects all double and some triple-bit errors
• High-speed BiCMOS technology
- Choice of +5V and +10V input ranges
- Operates with +5V and -12V power supplies
- Fast 125 ns bus-access time



Pinout

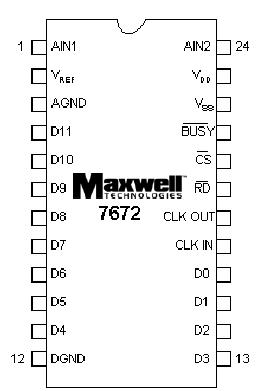

  Connection Diagram


Specifications

PARAMETER SYMBOL MIN MAX UNITS
Positive Supply Voltage to DGND VDD -0.3 7.0 V
Negative Supply Voltage to DGND VSS -17 +0.3c V
AGND to DGND -- -0.3
VDD+0.3 V
AIN1, AIN2 to AGND -- -15 +15 V
Digital Input Voltage to DGND VIN -0.3
VDD +0.3 V
Digital Output Voltage to DGND VOUT -0.3
VDD +0.3 V
VREF to AGND -- VSS -0.3 VDD +0.3 V
Power Dissipation to +75°C PD -- 1000 mW
Power Dissipation above 75°C (Derate) -- -- 10 mW/°C
Thermal Impedance JC -- 3.24 °C/W
Storage Temperature Range TSTG -65 +150 °C
Operating Temperature Range TA -55 +125 °C



Description

   Maxwell Technologies' 7672 high-speed 12-bit analog-todigital (Si) total dose tolerance, depending upon space mission. The 7672 uses an accurate high-speed DAC and comparator to achieve conversion time as low as 5 µs while dissipating only 110 mW of power. The 7672 is designed to be used with an external reference voltage. This allows the user to choose a reference whose performance suits the application or to drive multiple 7672s from a single system reference, since the reference input is buffered and draws very little current. For digital signal processing applications where absolute accuracy and temperature coefficients may be unimportant, a low cost reference can be used. For optimal precision, a high accuracy reference where an absolute 12-bit accuracy can be obtained over a wide temperature range may be used. Analog input range is pin-selectable for 0 to +5V, 0 to +10V, or ±5V, making the ADC ideal for data acquisition and analog input/output cards. A high-speed digital interface (125 ns data access time) with three state data outputs is compatible with most microprocessors.

   Maxwell Technologies' patented RAD-PAK® packaging technology incorporates radiation shielding in the microcircuit package. It eliminates the need for box shielding while providing the required radiation shielding for a lifetime in orbit or space mission. In a GEO orbit, RAD-PAK provides greater than 100 krad (Si) radiation dose tolerance. This 7672 is available with screening up to Class S.



Parameters:

Technical/Catalog Information7672
VendorKeystone Electronics
CategoryHardware, Fasteners, Accessories
Between Board Height 1.500" (38.1mm) 1 1/2"
ColorNatural
Length - Overall1.500" (38.1mm) 1 1/2"
MaterialCeramic
Plating-
Size0.375" (9.5mm) 3/8" Outer Dia
Thread/Screw/Hole Size6-32 Thread
TypeRound, Threaded, Female/Female
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 7672
7672
7672K ND
